Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2259426X Top Grille Assembly (etched Aluminum) Appelez-nous -
2 2259320 Cover, Unit Appelez-nous -
4 2256466 Back Panel Special Order $ 327.22

5 2302974 Front, Unit Cover Appelez-nous -
6 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

7 2187423 Wire Assembly Appelez-nous -
9 489348 Clamp Appelez-nous -
11 2259437X Grille-trim, Bottom Appelez-nous -
12 WP488130 Nut   (Replaces: 1161548) Special Order $ 7.32

13 2259440X Grille-trim, Top Appelez-nous -
14 2259420X Grille-trim, Right Side Appelez-nous -
15 2003347 Screw 8-32 X 7/16 Special Order $ 14.99

16 2259421X Grille-trim, Left Side Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

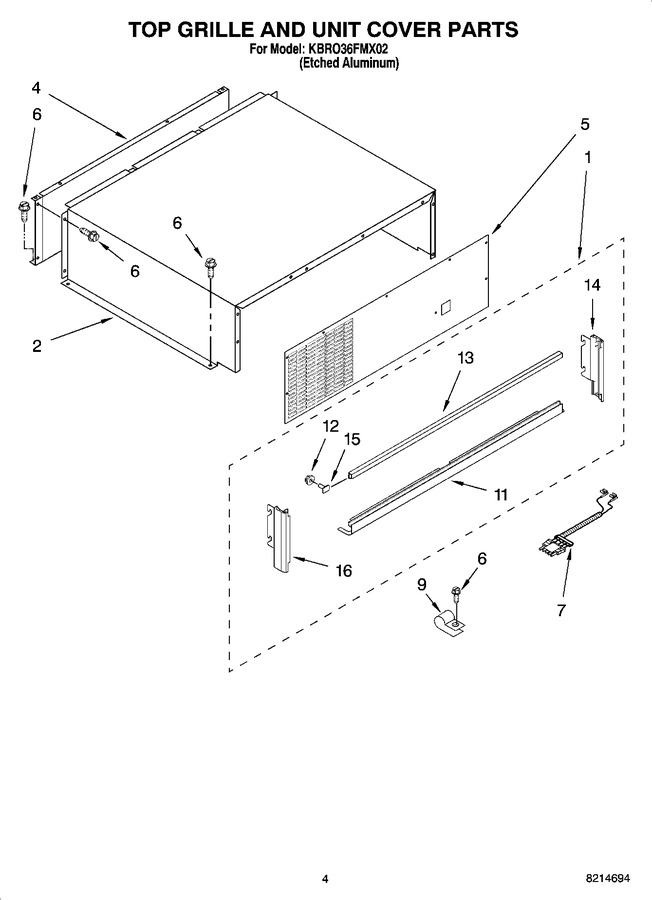

Diagram for KBRO36FMX02
