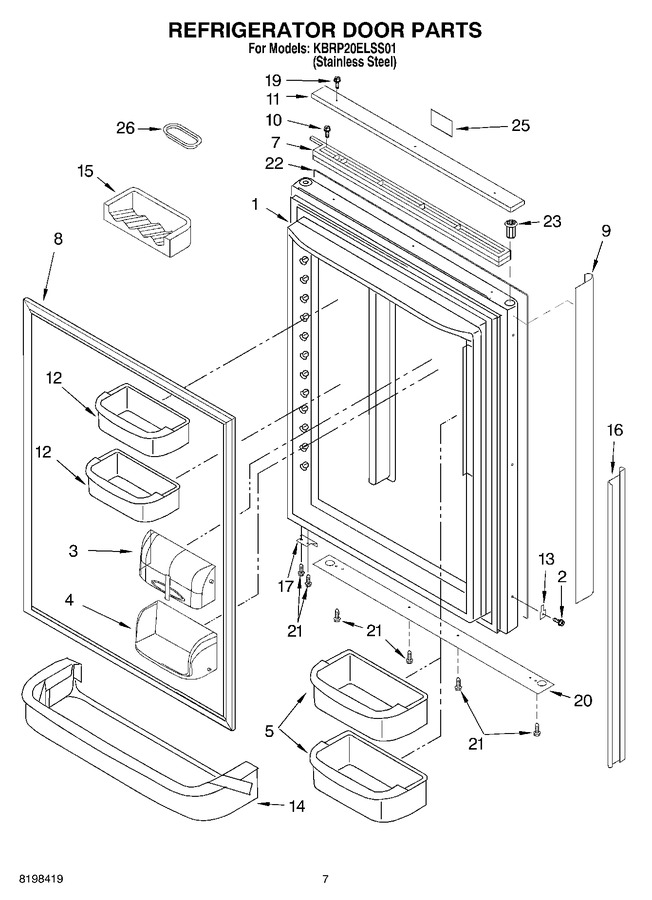

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8170814		Refrigerator Door		Appelez-nous	-
2	8170431		Screw		Appelez-nous	-
3	WP67003637		Door, Compartment   (Replaces: 8170794)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 8170793)			Immediately	$ 88.01
5	8171019		Shelf Bin (large)		Appelez-nous	-
7	8171104		Trim, Door Extension		Appelez-nous	-
8	W10849442		Door Gasket, Magnetic   (Replaces: 8170952)				$ 361.55
9	8171106		Door Handle		Appelez-nous	-
10	WP489474		Screw   (Replaces: 4343690)			Immediately	$ 8.55
11	8171105		Trim, Door (top)		Appelez-nous	-
12	8170751		Shelf Bin (medium)		Appelez-nous	-
13	67002451		Clip, Handle   (Replaces: 8171107)				$ 8.86
14	8171012		Trim, Door Shelf		Appelez-nous	-
15	WP67005626		Caddy, Can   (Replaces: 8171020)				$ 81.49
16	8171109		Trim, Door (left Side)		Appelez-nous	-
16	8171108		Trim, Door (right Side)		Appelez-nous	-
17	W11708403		Stop, Door   (Replaces: 4344563)			Immediately	$ 14.75
19	4343788		Screw		Appelez-nous	-
20	8171110		Trim, Door (bottom)		Appelez-nous	-
21	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 8.20
22	8171111		Panel, Door (stainless Steel)		Appelez-nous	-
23	4344361		Bushing		Appelez-nous	-
25	8170732		Nameplate		Appelez-nous	-
26	4344296		Dish, Butter		Appelez-nous	-
