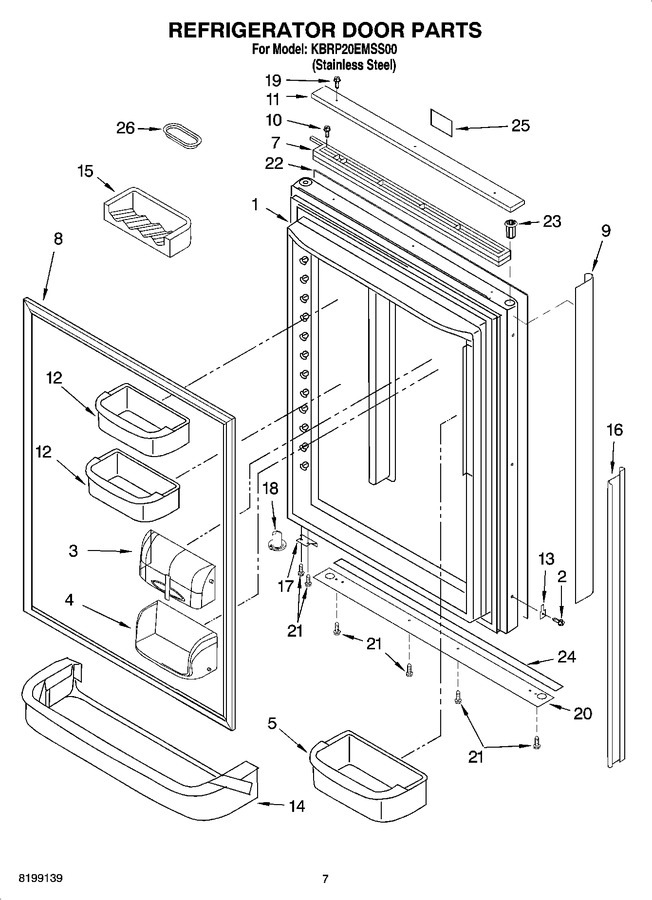

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8170814		Refrigerator Door		Appelez-nous	-
2	8170431		Screw		Appelez-nous	-
3	WP12744905		Door, Compartment (includes 4)   (Replaces: 8171204)				$ 102.59
4	WP67001279		Tray, Dairy   (Replaces: 8170793)			Immediately	$ 79.21
5	8170751		Shelf Bin (medium)		Appelez-nous	-
7	8171104		Trim, Door Extension		Appelez-nous	-
8	W10849442		Door Gasket, Magnetic   (Replaces: 8171192)				$ 325.40
9	8171106		Door Handle		Appelez-nous	-
10	WP489474		Screw   (Replaces: 4343690)			Immediately	$ 7.70
11	8171105		Trim, Door (top)		Appelez-nous	-
12	8171019		Shelf Bin (large)		Appelez-nous	-
13	67002451		Clip, Handle   (Replaces: 8171107)				$ 7.97
14	8171012		Trim, Door Shelf		Appelez-nous	-
15	WP67005626		Caddy, Can   (Replaces: 8171020)				$ 73.34
16	8171108		Trim, Door (right Side)		Appelez-nous	-
16	8171109		Trim, Door (left Side)		Appelez-nous	-
17	W11708403		Stop, Door   (Replaces: 8171214)			Immediately	$ 13.28
18	WP67003639		Closer, Door   (Replaces: 8171246)				$ 81.29
19	4343788		Screw		Appelez-nous	-
20	8171110		Trim, Door (bottom)		Appelez-nous	-
21	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 7.38
22	8208161		Panel, Door Stainless Steel		Appelez-nous	-
23	67004978		Bushing   (Replaces: 8171213)				$ 19.89
24	8208176		Spacer, Bottom		Appelez-nous	-
25	8170732		Nameplate		Appelez-nous	-
26	4344296		Dish, Butter		Appelez-nous	-
