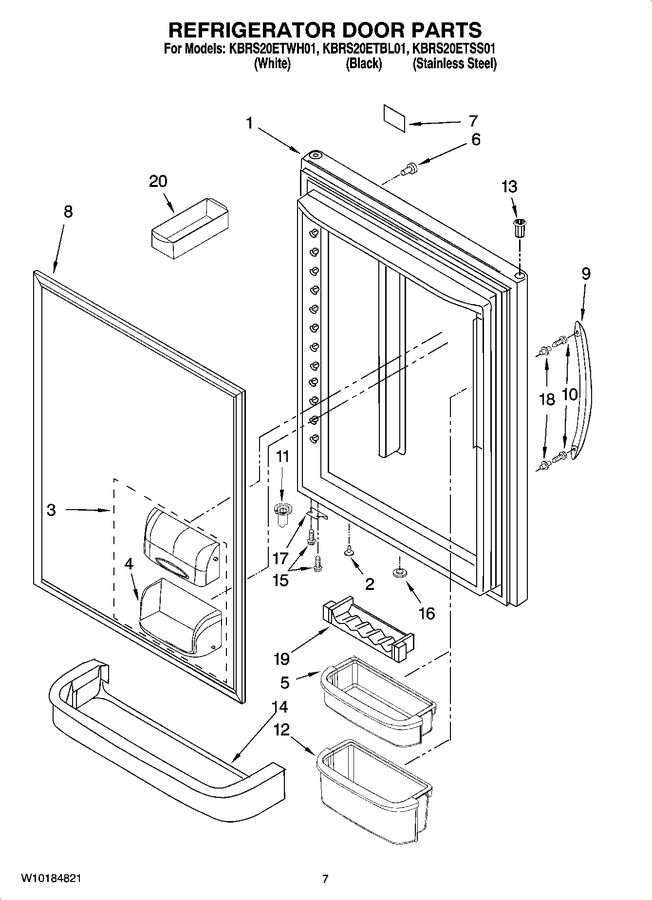

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004804 | Refrigerator Door (w/ Insulation) (white) |
|
- | |||||
| 1 | 67004803 | Refrigerator Door (w/ Insulation) (black) |
|
- | |||||
| 1 | W10184824 | Refrigerator Door (w/ Insulation) (stainless Steel) |
|
- | |||||
| 2 | WP67001130 | Plug, Vent (white) (Replaces: 67001130) |
|
Immediately | $ 5.98 | ||||
| 2 | WP12246608 | Plug, Vent (black) (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 3 | WP12744905 | Door, Compartment (Replaces: 67003819) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | 67005724 | Bucket, Short |
|
- | |||||
| 6 | WP12246608 | Plug, Handle Hole (black) (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 6 | WP67001130 | Plug, Handle Hole (white) (Replaces: 67001130) |
|
Immediately | $ 5.98 | ||||
| 7 | W10146640 | Nameplate (black) |
|
- | |||||
| 7 | W10146610 | Nameplate (grey) |
|
- | |||||
| 7 | W10146670 | Nameplate (white) |
|
- | |||||
| 8 | W10443317 | Gasket, Door Magnetic (white) (Replaces: W10133418) |
|
$ 366.79 | |||||
| 8 | W10849442 | Gasket, Door Magnetic (black) (Replaces: W10133881) |
|
$ 361.55 | |||||
| 9 | 2319727S | Handle, Door (stainless Steel) |
|
$ 133.96 | |||||
| 9 | 2319727W | Handle, Door (white) |
|
$ 106.80 | |||||
| 9 | 2319727B | Handle, Door (black) |
|
$ 109.87 | |||||
| 10 | WP3387230 | Screw (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 67003638) |
|
Immediately | $ 8.15 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 90.32 | |||||
| 12 | 67005464 | Bucket (2) (large) |
|
$ 35.95 | |||||
| 13 | WP67004977 | Bushing (white) (Replaces: 67004977) |
|
$ 8.20 | |||||
| 13 | 67004978 | Bushing (black) |
|
$ 22.10 | |||||
| 14 | 67003027 | Retainer Shelf |
|
- | |||||
| 15 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 16 | 10712401 | Plug, Button (white) |
|
$ 7.79 | |||||
| 16 | 67004838 | Plug, Button (black) |
|
$ 11.21 | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 69.29 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.75 | ||||
| 18 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 19 | WP67005626 | Caddy, Can (Replaces: 67005626) |
|
$ 81.49 | |||||
| 20 | W10136387A | Bin, Egg (Replaces: W10136387) |
|
$ 19.54 |
