SELECT A DIAGRAM

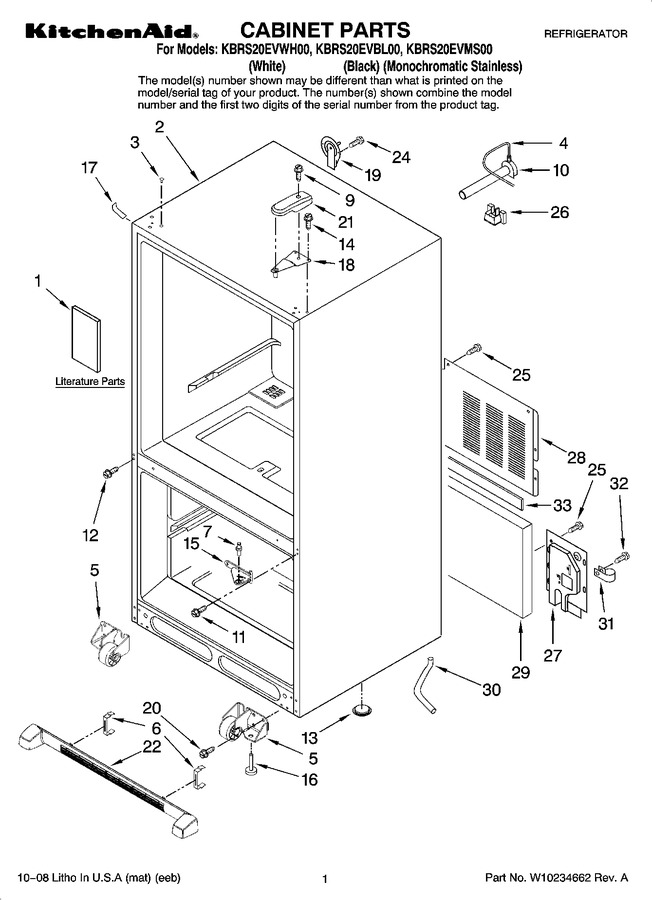

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Freezer Door Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10137649		Use & Care Guide		Appelez-nous	-
1	W10209771		Energy Guide		Appelez-nous	-
1	67006616		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: 67001131)			Immediately	$ 8.15
3	WP67001130		Plug, Button (3) (white)   (Replaces: 67001130)			Immediately	$ 5.98
4	WPB5705307		Tube, Plastic   (Replaces: 67003729)				$ 13.05
5	W11820444		Roller Foot Assembly (lh)   (Replaces: W10237085)			Immediately	$ 37.35
5	W11820445		Roller Foot Assembly (rh)   (Replaces: W10237087)			Immediately	$ 37.35
6	12627302		Clip, Grille				$ 5.84
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 8.78
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
11	W11573362		Screw   (Replaces: 67006380)				$ 14.72
12	WP98165		Screw   (Replaces: 67006473)				$ 8.57
13	A3076901		Plug, Button				$ 5.70
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 69.79
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 167.35
15	W11689473		Hinge, Center (apollo Grey)   (Replaces: 12607103AP)				$ 69.79
16	WPW10141622		Foot Brake (2)   (Replaces: W10141622)			Immediately	$ 8.24
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: 12587703AP)				$ 8.07
17	67003484		Cover, Corner (white)				$ 21.42
18	WP12566606ED		Hinge, Top Left   (Replaces: 12566606ED)			Immediately	$ 47.13
19	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
20	67006564		Screw (8)			Immediately	$ 8.15
21	67001012		Cover, Hinge (black)				$ 49.71
21	W11106366		Cover, Hinge (apollo Grey)   (Replaces: 12477601AP)				$ 75.82
21	67001014		Cover, Hinge (white)				$ 22.34
22	W10131133		Grille Assembly (includes Clips) (white)		Appelez-nous	-
22	W10131134		Grille Assembly (includes Clips) (black)				$ 53.25
24	WP98165		Screw   (Replaces: 67006287)				$ 8.57
25	67006425		Screw			Immediately	$ 7.30
26	67004092		Block, Filter		Appelez-nous	-
27	12751509		Cover, Water Valve		Appelez-nous	-
28	12575101WD		Cover, Unit				$ 73.26
29	67003796		Insulation, Sound				$ 19.27
30	W10164397		Tube, Drain				$ 15.53
31	W10157973		Clip, Drain Tube				$ 7.80
32	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
33	B5759649		Gasket		Appelez-nous	-
