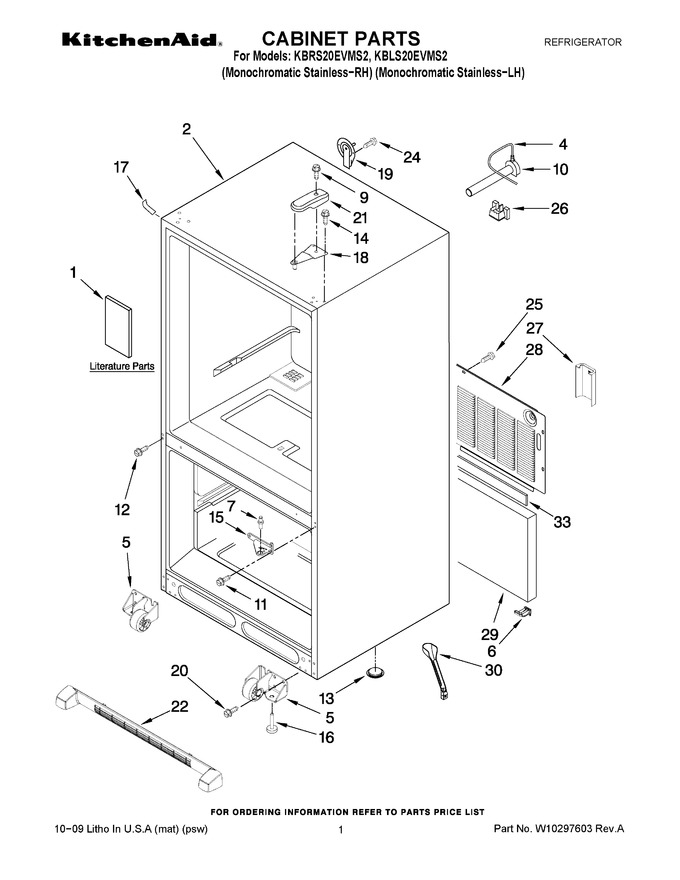

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10137649 | Use & Care Guide |
|
- | |||||
| 1 | W10238843 | Tech Sheet |
|
- | |||||
| 1 | W10209771 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 4 | W11120581 | Tube, Plastic (Replaces: B5705333SP) |
|
$ 124.93 | |||||
| 5 | W11820445 | Roller Foot Assembly (rh) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820444 | Roller Foot Assembly (lh) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 6 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 119.86 | ||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (apollo Grey) (Replaces: 12607103AP) |
|
$ 69.79 | |||||
| 16 | WPW10141622 | Foot Brake (2) (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 17 | WP12587703AP | Cover, Corner (apollo Grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | WP12566606ED | Hinge, Top Left (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 19 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | W11106366 | Cover, Hinge (apollo Grey) (Replaces: 12477601AP) |
|
$ 75.82 | |||||
| 22 | WPW10534155 | Grille Assembly Apollo Grey (Replaces: W10244558) |
|
Immediately | $ 119.56 | ||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12777701 | Block, Filter |
|
$ 7.17 | |||||
| 27 | W10208593 | Guard-water Valve |
|
$ 15.71 | |||||
| 28 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 29 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 30 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 33 | B5759655 | Gasket |
|
$ 13.03 |
