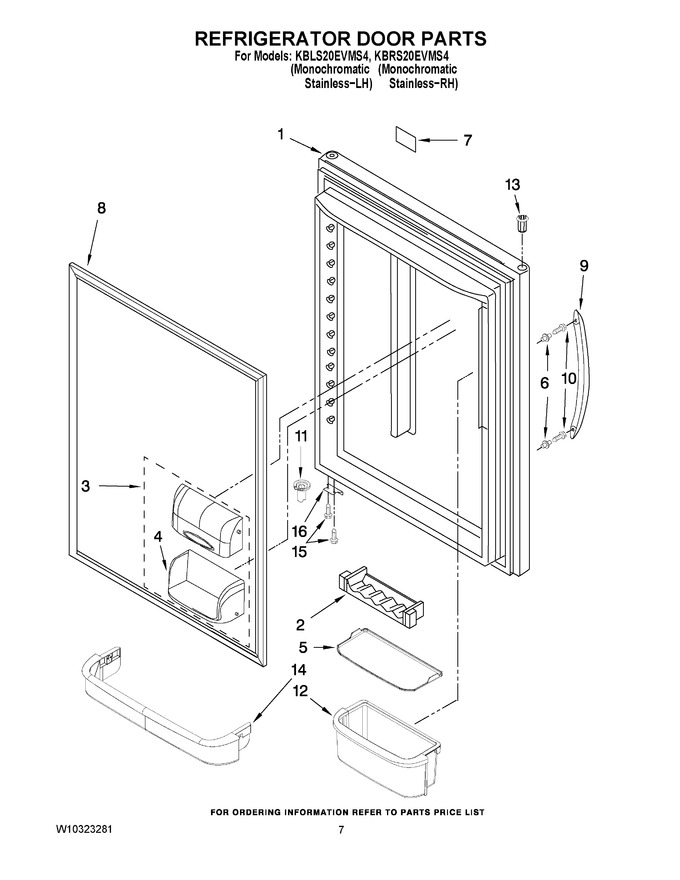

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107518SQ		Door, Refrigerator (stainless - Lh)		Appelez-nous	-
1	13107520SQ		Door, Refrigerator (stainless - Rh)		Appelez-nous	-
2	WP67005626		Caddy, Can   (Replaces: 12690102)				$ 81.49
3	WP12744905		Door, Dairy (includes No.4)   (Replaces: 12744905)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	12567322SP		Gripper, Bucket		Appelez-nous	-
6	WP67006113		Mount-handle   (Replaces: 13001201)			Immediately	$ 12.56
7	W10046610		Nameplate (grey)				$ 33.40
8	W10179478		Gasket, Door (apollo Grey)		Appelez-nous	-
9	WPW10314517K		Handle, Door (stainless)   (Replaces: W10314517)				$ 243.37
10	WP3387230		Screw, Handle   (Replaces: 3196181)			Immediately	$ 8.54
11	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
12	12849115SP		Bucket, Shelf (gallon)		Appelez-nous	-
13	10961006AP		Bushing (apollo Grey)				$ 9.65
14	12690503		Retainer, Door				$ 48.08
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	W11401472		Stop, Door (apollo Grey)   (Replaces: 10447114)			Immediately	$ 23.56
