Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10192432 Door, Freezer (white) Appelez-nous -
1 W10192434 Door, Freezer (black) Appelez-nous -
1 W10180959 Door, Freezer (stainless) Appelez-nous -
2 WPW10314515 Handle, Door (white)   (Replaces: W10119642) Special Order $ 227.13

2 W10119643 Handle, Door (black) Appelez-nous -
2 WPW10314517K Handle, Door (stainless)   (Replaces: W10119644) Special Order $ 231.78

3 WP67006113 Mount, Handle   (Replaces: 67006113) In-Stock Immediately $ 11.96

4 W10443319 Gasket, Door (white)   (Replaces: W10164040) Special Order $ 281.76

4 W10436252 Gasket, Door (black)   (Replaces: W10164041) In-Stock Immediately $ 345.03

4 W10443320 Gasket, Door (apollo Grey)   (Replaces: W10164042) In-Stock Immediately $ 125.25

5 67006901 Screw In-Stock Immediately $ 8.02

6 10712401 Plug, Vent (2) (white) Special Order $ 7.79

6 67004838 Plug, Vent (2) (black) Special Order $ 10.68


    View Diagram in Separate Window     Print Icon   Print Part List

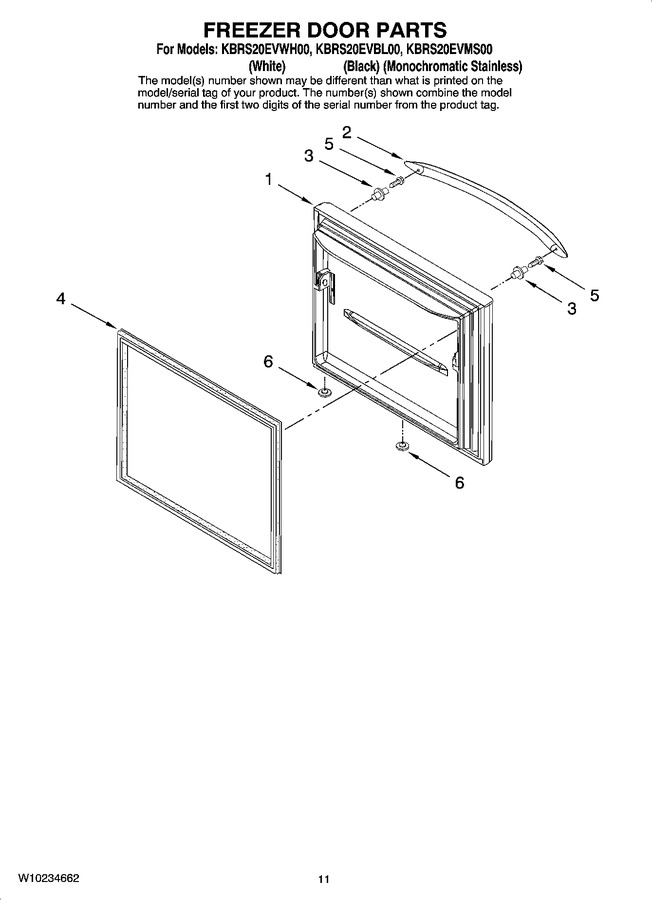

Diagram for KBRS20EVWH00
