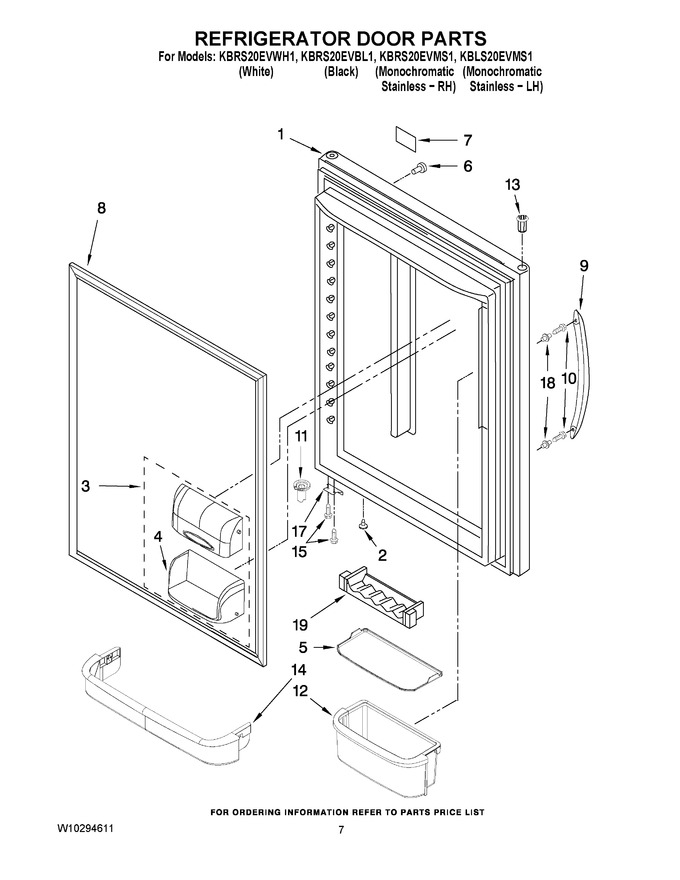

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658582WQ | Door, Refrigerator (white) |
|
- | |||||
| 1 | 13023867SQ | Door, Refrigerator (stainless - Lh) |
|
- | |||||
| 1 | 13023868SQ | Door, Refrigerator (stainless - Rh) |
|
- | |||||
| 1 | 12658582BQ | Door, Refrigerator (black) |
|
- | |||||
| 2 | WP67001130 | Plug, Vent (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 2 | WP12246608 | Plug, Vent (black) (Replaces: 12246608) |
|
Immediately | $ 7.76 | ||||
| 3 | WP12744905 | Door, Dairy (includes No.4) (Replaces: 12744905) |
|
$ 108.56 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | 12567322SP | Gripper, Bucket |
|
- | |||||
| 6 | WP12246608 | Plug, Handle Hole (black) (Replaces: 12246608) |
|
Immediately | $ 7.76 | ||||
| 6 | WP67001130 | Plug-handle Hole (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 7 | WPW10243393 | Nameplate (white) (Replaces: W10046670) |
|
$ 66.65 | |||||
| 7 | W10046610 | Nameplate (grey) |
|
$ 33.40 | |||||
| 7 | WPW10243392 | Nameplate (black) (Replaces: W10046640) |
|
$ 70.19 | |||||
| 8 | W10164038 | Gasket, Door (white) |
|
$ 234.10 | |||||
| 8 | W10179478 | Gasket, Door (apollo Grey) |
|
- | |||||
| 8 | W10164039 | Gasket, Door (black) |
|
$ 327.23 | |||||
| 9 | WPW10314517K | Handle, Door (stainless) (Replaces: W10119644) |
|
$ 231.78 | |||||
| 9 | W10119643 | Handle, Door (black) |
|
- | |||||
| 9 | WPW10314515 | Handle, Door (white) (Replaces: W10119642) |
|
$ 227.13 | |||||
| 10 | WP3387230 | Screw, Handle (Replaces: 3196181) |
|
Immediately | $ 8.54 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 11 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 12 | 12849115SP | Bucket, Shelf (2) (gallon) |
|
- | |||||
| 13 | 10961006AP | Bushing (apollo Grey) |
|
$ 9.19 | |||||
| 13 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 7.81 | |||||
| 13 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 21.05 | |||||
| 14 | 12690503 | Retainer, Door |
|
$ 48.08 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 | |||||
| 17 | W11401472 | Stop, Door (apollo Grey) (Replaces: 10447114) |
|
Immediately | $ 22.44 | ||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 18 | 12691403 | Mount, Handle |
|
- | |||||
| 19 | WP67005626 | Caddy, Can (Replaces: 12690102) |
|
$ 77.61 |
