Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001317 Ladder, Side Special Order $ 39.13

2 67006425 Screw   (Replaces: 67006400) In-Stock Immediately $ 6.95

3 67001073 Ladder, Center Special Order $ 54.18

4 W10709795 Screw (2)   (Replaces: 67006360) Special Order $ 13.13

5 W11402523 Shelf, Fixed (2)   (Replaces: 12463509) In-Stock Immediately $ 221.39

6 W11402521 Shelf, Glide (2)   (Replaces: 12463310) Special Order $ 220.55

7 WP67006878 Glass, Crisper   (Replaces: 67006878) In-Stock Immediately $ 185.19

8 WPW10568041 Frame, Crisper   (Replaces: 67001056) In-Stock Immediately $ 137.23

9 WPW10671238 Support, Center Crisper Drawer   (Replaces: 67001057) In-Stock Immediately $ 112.82

10 WP67005864 Slide, Humidity Control   (Replaces: 67005864) In-Stock Immediately $ 7.81

12 WP67001716 Hook, Ladder (2)   (Replaces: 67001716) In-Stock Immediately $ 10.61

13 WP12227303WD Support, Crisper Frame   (Replaces: 67001059) Special Order $ 105.95

14 W10231483 Trim, Crisper   (Replaces: 67005732) Special Order $ 111.44

15 67005927 Pan, Crisper (2) Appelez-nous -
16 W10201223 Basket, Freezer (upper) Appelez-nous -
17 WP67001719 Track, Pantry   (Replaces: 67001719) In-Stock Immediately $ 8.56

18 W10171557 Divider, Upper Basket Appelez-nous -
20 WPW10503183 Basket, Freezer (lower)   (Replaces: W10150038) In-Stock Immediately $ 237.48

21 W10205416 Divider, Lower Basket Appelez-nous -
22 WP67006878 Glass, Pantry   (Replaces: 67006878) In-Stock Immediately $ 185.19

23 WPW10568041 Frame, Pantry   (Replaces: 67001056) In-Stock Immediately $ 137.23

24 67002005 Gasket, Pantry Appelez-nous -
25 WP12531601 Tunnel, Pantry   (Replaces: 67002004) Special Order $ 10.51

26 W10656985 Trim, Pantry   (Replaces: 67001913) Special Order $ 131.12

27 67002002 Slide, Pantry Control In-Stock Immediately $ 16.04

28 67002003 Rod, Temperature Control Special Order $ 47.06

29 WP12227303WD Support, Rear   (Replaces: 67001059) Special Order $ 105.95

30 67005928 Drawer, Pantry Appelez-nous -
31 WP67001722 Support, Pantry (right)   (Replaces: 67001722) In-Stock Immediately $ 8.93

31 WP67001721 Support, Pantry (left)   (Replaces: 67001721) In-Stock Immediately $ 8.70


    View Diagram in Separate Window     Print Icon   Print Part List

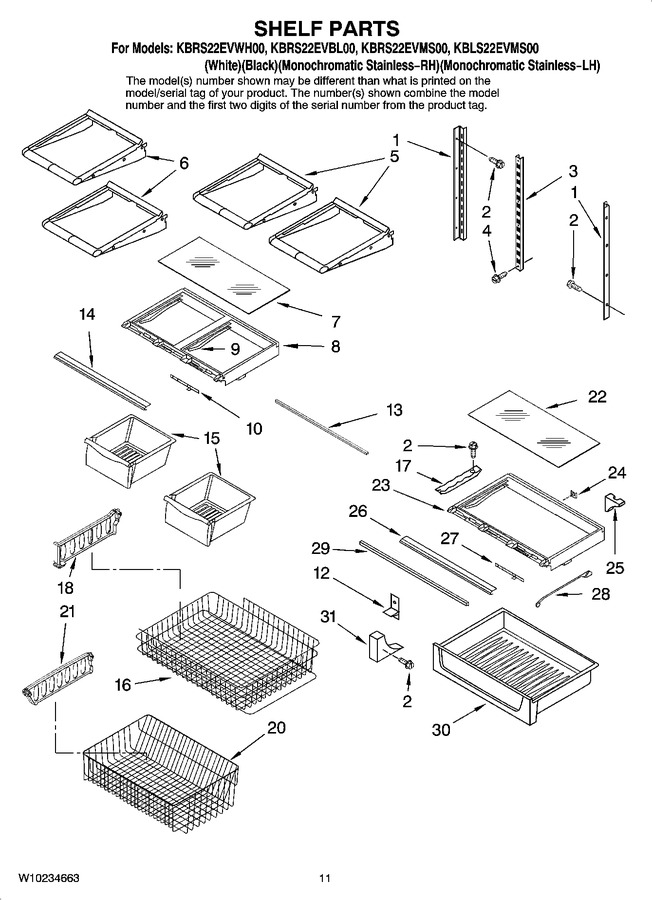

Diagram for KBRS22EVBL00
