SELECT A DIAGRAM

01 - Color Variation Parts


02 - Case, Gearing And Planetary Unit

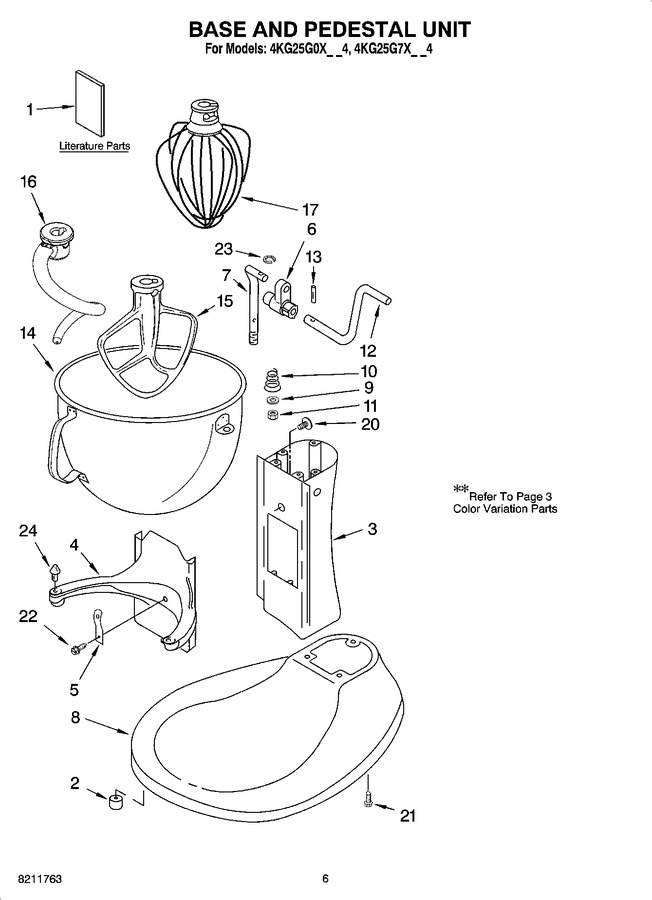

03 - Base And Pedestal Unit, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9708308		Use & Care Guide		Appelez-nous	-
1	8211763		Repair Parts List		Appelez-nous	-
2	WP9708649		Foot, Rubber (5)   (Replaces: 9708649)			Immediately	$ 4.79
5	WPW10504114		Latch, Bowl Spring   (Replaces: 9703474)			Immediately	$ 5.14
6	WP9706885		Arm, Bowl Lift   (Replaces: 9706885)			Immediately	$ 5.17
7	W11775238		Rod, Bowl Lift   (Replaces: 9706787)				$ 5.73
9	W11708395		Washer   (Replaces: 9703439)				$ 4.47
10	4159622		Spring   (Replaces: 9237)			Immediately	$ 4.70
11	8533907		Nut				$ 24.83
12	W11778321		Handle, Bowl Lift   (Replaces: 9706788)				$ 24.01
13	WP3400814		Screw   (Replaces: 3400863)				$ 4.62
14	WPW10716820		Bowl, 5 Qt.   (Replaces: 9707678)				$ 120.30
15	240235-4		Beater, Flat		Appelez-nous	-
16	W11319616		Dough Hook   (Replaces: 9708265)				$ 45.29
17	WPW10731415		Wire Whip   (Replaces: 9704309)			Immediately	$ 37.93
20	W11721849		Cam, Adjusting   (Replaces: 9703426)				$ 6.08
21	W10913677		Screw (3) 1/4 - 20 X 3/4   (Replaces: 3400200)				$ 4.64
22	W10861883		Screw, 10-24 X 1/2   (Replaces: 3400018)			Immediately	$ 4.94
23	WP9703307		Clip   (Replaces: 9703307)			Immediately	$ 4.42
24	WP240185		Pin, Bowl Retain   (Replaces: 240185)				$ 4.50
	4164749		Food Grinder (fg-a)		Appelez-nous	-
	4164778		Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a))		Appelez-nous	-
	4164774		Fruit/vegetable Strainer And Food Grinder, Fvs/fga		Appelez-nous	-
	4164824		Pasta Maker Plates Snpa		Appelez-nous	-
	RVSA		Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa)   (Replaces: 4164750)				$ 115.50
	FVSP		Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775)				$ 117.81
	4164768		Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a)		Appelez-nous	-
	8211924		Grain Mill, Kgma		Appelez-nous	-
	9708348		Spoons, Measuring		Appelez-nous	-
	9707963		Ice Cream Maker, Kica0wh0		Appelez-nous	-
	9706987		Spatula (white)		Appelez-nous	-
	W11200218		Grease, Planetary   (Replaces: 4160588)			Immediately	$ 86.08
	4164803		Sausage Stuffer, Kit, Ssa		Appelez-nous	-
	4164747		Can Opener, Co		Appelez-nous	-
	4164748		Juicer, Je		Appelez-nous	-
	4162838		Food Tray (ft)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
