SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

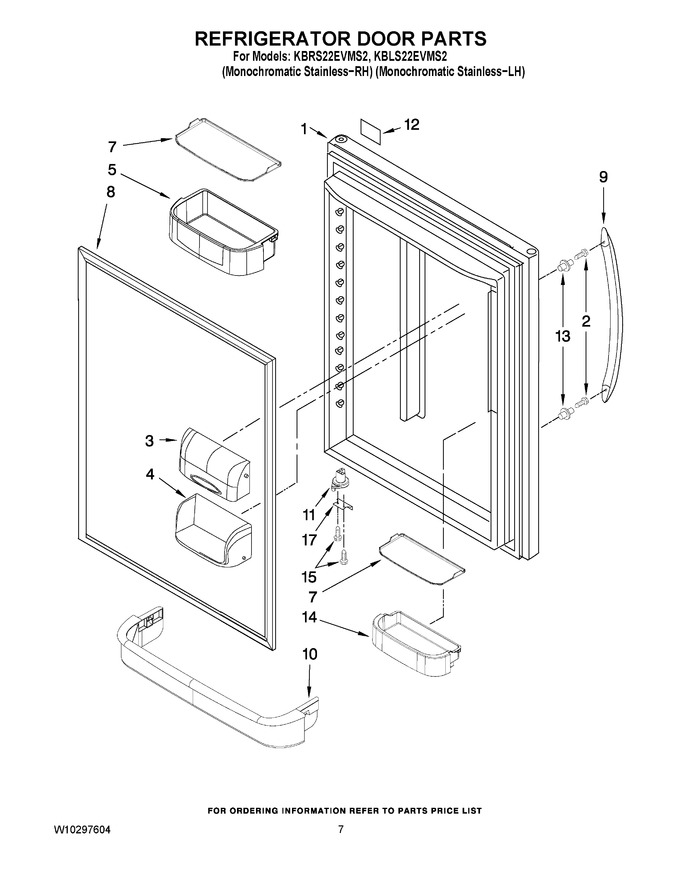

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023876SQ		Door, Refrigerator (stainless Steel-rh)		Appelez-nous	-
1	13023879SQ		Door, Refrigerator (stainless Steel-lh)		Appelez-nous	-
2	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 8.54
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WPW10371195		Bucket, Medium (3)   (Replaces: 12849114SP)			Immediately	$ 83.21
7	WPW10450021		Gripper, Medium   (Replaces: 12567321SP)			Immediately	$ 96.12
8	W10443314		Gasket, Door (apollo Grey)   (Replaces: W10180621)			Immediately	$ 332.45
9	WPW10314517K		Handle, Door (stainless)   (Replaces: W10119644N)				$ 231.78
10	12690502		Retainer, Door				$ 45.03
11	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
12	W10046610		Nameplate (apollo Grey)				$ 33.40
13	12691403		Mount, Handle		Appelez-nous	-
14	12643911SP		Bucket, Short				$ 43.60
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
17	W11401472		Stop, Door (apollo Grey)   (Replaces: 10447114)			Immediately	$ 22.44

    View Diagram in Separate Window       Print Part List
