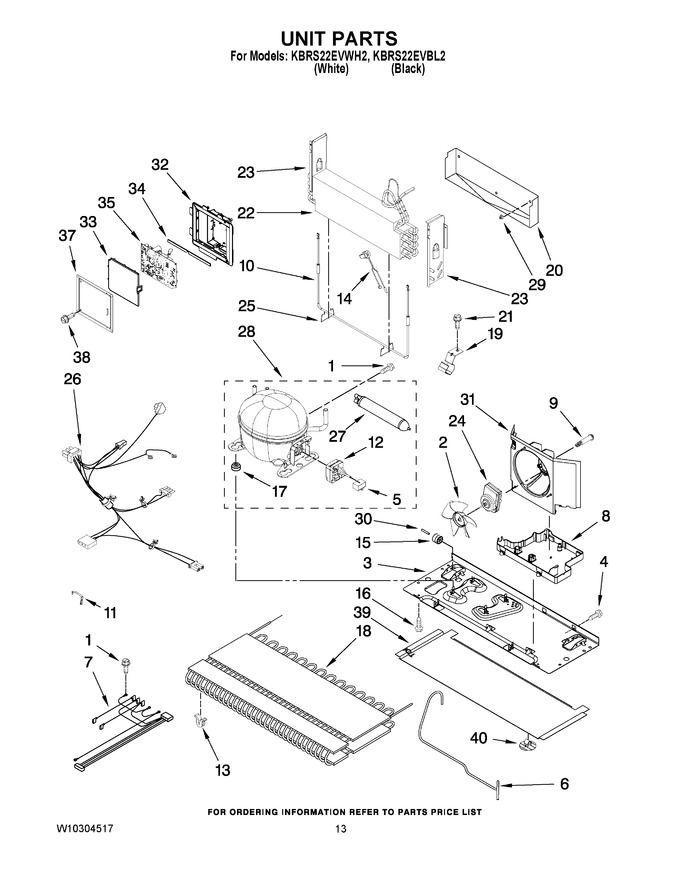

07 - Unit Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W10480110		Basepan   (Replaces: W10210983)				$ 160.74
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
5	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
6	W10217745		Tube, Discharge				$ 33.82
7	W10911102		Harness, Evap. Heater   (Replaces: W10224515)			Immediately	$ 98.34
8	WPW10655367		Pan, Drain   (Replaces: W10296784)			Immediately	$ 85.17
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 12.65
10	WP12729128		Heater, Defrost   (Replaces: 12729128)			Immediately	$ 97.71
11	W11661170		Strap, Bale   (Replaces: W10174384)			Immediately	$ 11.30
12	WPW10197426		Start Device   (Replaces: W10197426)				$ 154.34
13	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 8.34
14	WPW10165425		Thermostat, Defrost   (Replaces: 12639324SP)			Immediately	$ 74.57
15	12477102		Roller (2)			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 10835903SP)			Immediately	$ 7.19
18	WPW10346420		Condenser   (Replaces: W10135027)				$ 280.34
19	10547003		Clip, Drier		Appelez-nous	-
20	WPW10292802		Tray, Drip   (Replaces: 12225402WD)				$ 176.74
21	WP33001882		Screw   (Replaces: 12990701)				$ 79.72
22	12001919		Evaporator   (Replaces: 12726402)			Immediately	$ 391.29
23	12225602		Dam (left Side)				$ 14.66
23	12225702		Dam (right Side)				$ 14.09
24	W11613295		Motor, Fan   (Replaces: W10239053)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	W11224411		Harness, Unit With Power Cord   (Replaces: W10234025)				$ 140.02
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10130129		Compressor (includes Items 11,12,17,27)		Appelez-nous	-
29	10623002		Clip, Evaporator				$ 11.53
30	67006434		Axle, Roller (2)   (Replaces: 12477202)			Immediately	$ 7.52
31	W11556315		Shroud   (Replaces: W10189184)				$ 79.66
32	W10257665		Box, Hv Control				$ 50.84
33	W11226688		Lid, Hv Box   (Replaces: W10296541)				$ 81.10
34	12957801		Gasket, Hv Box		Appelez-nous	-
35	WPW10317076		Board, Control (hv, Apollo)   (Replaces: W10205552)			Immediately	$ 393.18
37	12961602		Cover-control Box				$ 110.66
38	W11686675		Screw   (Replaces: 12990702)				$ 13.59
39	W10206337		Extension-basepan		Appelez-nous	-
40	W10206339		Fastener, Basepan				$ 10.69
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.00 Ozs. (r-134a))		Appelez-nous	-
