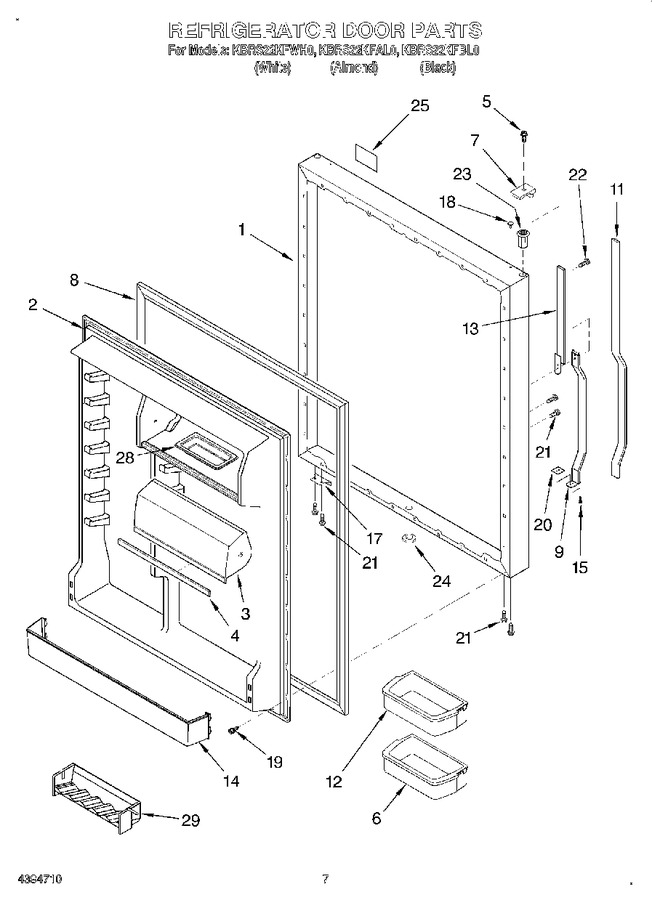

05 - Refrigerator Door


06 - Unit


07 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344332		Refrigerator Door Panel (includes Insulation) (white)		Appelez-nous	-
1	4344331		Refrigerator Door Panel (includes Insulation) (almond)		Appelez-nous	-
1	4344330		Refrigerator Door Panel (includes Insulation) (black)		Appelez-nous	-
2	4344371		Interior Panel		Appelez-nous	-
3	4344369		Door, Compartment		Appelez-nous	-
4	4344370		Trim, Comp. Door		Appelez-nous	-
5	4333151		Screw		Appelez-nous	-
6	4344372		Shelf Bin (1)		Appelez-nous	-
7	4344590		End Cap (almond)		Appelez-nous	-
7	4344589		End Cap (white)		Appelez-nous	-
7	4344591		End Cap (black)		Appelez-nous	-
8	WP12550115Q		Door Gasket, Magnetic (white)   (Replaces: 4344339)				$ 176.41
8	4344338		Door Gasket, Magnetic (black)		Appelez-nous	-
9	4344329		Door Handle		Appelez-nous	-
11	4344343		Insert, Handle (white)		Appelez-nous	-
11	4344345		Insert, Handle (black)		Appelez-nous	-
11	4344344		Insert, Handle (almond)		Appelez-nous	-
12	4344365		Shelf Bin (3)		Appelez-nous	-
13	4344356		Insert, Handle		Appelez-nous	-
14	4344373		Trivet, Door		Appelez-nous	-
15	4343653		Screw		Appelez-nous	-
17	4344334		Stop, Door		Appelez-nous	-
18	WP2189009		Plug, Button (black)   (Replaces: 4344208)				$ 7.25
18	4344207		Plug, Button (almond)		Appelez-nous	-
18	WP2189000		Plug, Button (white)   (Replaces: 4344209)			Immediately	$ 7.40
19	4343811		Screw		Appelez-nous	-
21	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 7.76
22	4344167		Screw		Appelez-nous	-
23	4344362		Bushing (white)		Appelez-nous	-
23	4344361		Bushing (black)		Appelez-nous	-
24	4344227		Plug, Button (white)		Appelez-nous	-
24	4344363		Plug, Button (almond)		Appelez-nous	-
24	4344364		Plug, Button (black)		Appelez-nous	-
25	4344326		Nameplate (white)		Appelez-nous	-
25	4344327		Nameplate (almond)		Appelez-nous	-
25	4344328		Nameplate (black)		Appelez-nous	-
28	4344296		Butter Dish		Appelez-nous	-
29	4344374		Holder, Beverage		Appelez-nous	-
