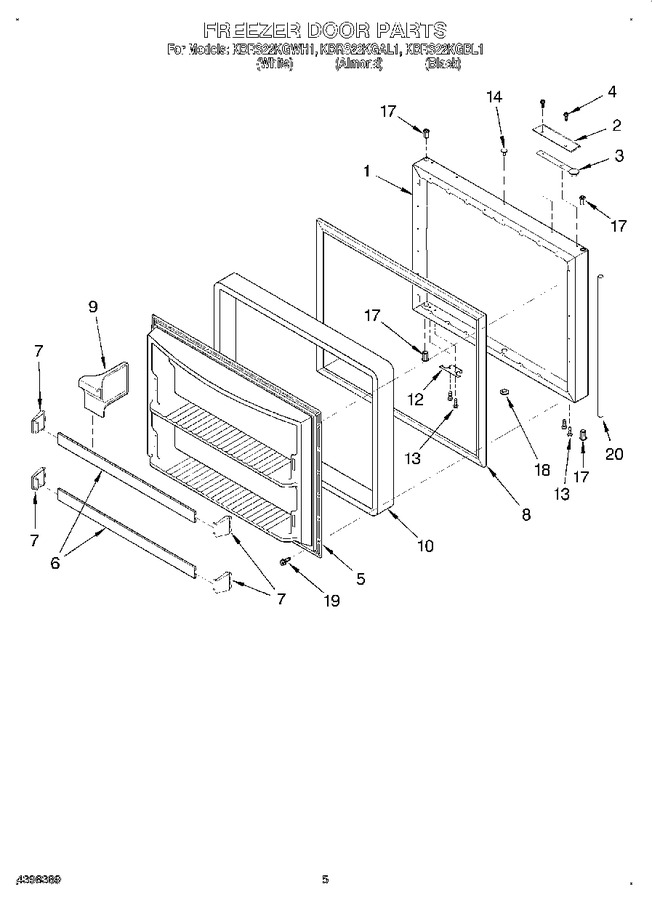

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344349		Freezer Door Panel (includes Insulation) (white)		Appelez-nous	-
1	4344348		Freezer Door Panel (includes Insulation) (almond)		Appelez-nous	-
1	4344347		Freezer Door Panel (includes Insulation) (black)		Appelez-nous	-
2	4344596		Handle (white)		Appelez-nous	-
2	4344598		Handle (black)		Appelez-nous	-
2	4344597		Handle (almond)		Appelez-nous	-
3	4344159		Plug, Button (white)		Appelez-nous	-
3	4344158		Plug, Button (almond)		Appelez-nous	-
3	4344157		Plug, Button (black)		Appelez-nous	-
4	8170396		Screw		Appelez-nous	-
5	4344355		Interior Panel		Appelez-nous	-
6	4344582		Trim, Shelf		Appelez-nous	-
7	4386917		End Cap   (Replaces: 4344352)			Immediately	$ 18.90
8	WP12550116Q		Door Gasket, Magnetic (mist Beige)   (Replaces: 8170398)			Immediately	$ 122.85
8	WP12550101Q		Door Gasket, Magnetic (black)   (Replaces: 8170397)			Immediately	$ 204.44
9	4344300		Divider, Door Shelf		Appelez-nous	-
10	876370		Insulation   (Replaces: 4344350)				$ 243.14
12	W11708403		Stop, Door (black)   (Replaces: 4344563)			Immediately	$ 14.75
12	12968202W		Door, Stop (white)   (Replaces: 4344463)				$ 69.29
12	67003781		Stop, Door (almond)   (Replaces: 4344456)				$ 83.12
13	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 8.20
14	WP67001130		Plug, Button (white)   (Replaces: 4344535)			Immediately	$ 5.98
14	4344534		Plug, Button (almond)		Appelez-nous	-
14	WP12246608		Plug, Button (black)   (Replaces: 4344533)			Immediately	$ 8.15
17	WP67004977		Bushing (white)   (Replaces: 4343945)				$ 8.20
17	4343944		Bushing (black)		Appelez-nous	-
18	4344364		Plug, Button (black)		Appelez-nous	-
18	4344227		Plug, Button (white)		Appelez-nous	-
19	4343811		Screw		Appelez-nous	-
20	4344199		Support Pin		Appelez-nous	-
