View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet, Literature

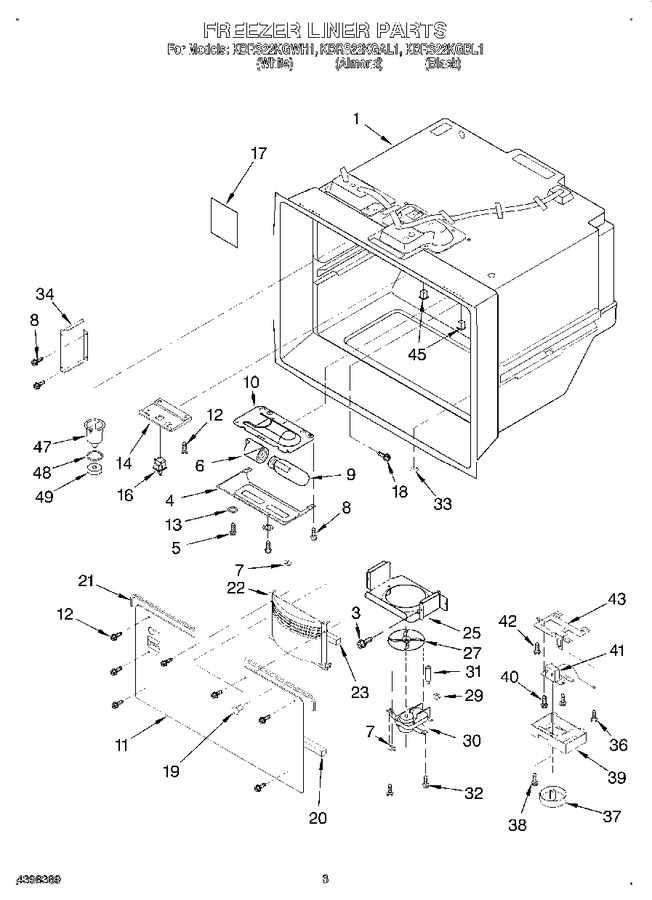

02 - Freezer Liner
03 - Freezer Door
04 - Refrigerator Liner
05 - Refrigerator Door
06 - Unit
07 - Shelf, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 3 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.00 | |||||
| 4 | 4344205 | Light Lens |
|
- | |||||
| 5 | 4344206 | Screw |
|
- | |||||
| 6 | 8170384 | Light Socket |
|
- | |||||
| 7 | 4343682 | Clip, Ground |
|
- | |||||
| 8 | 67006425 | Screw (Replaces: 4344396) |
|
Immediately | $ 6.95 | ||||
| 9 | W10887190 | Light Bulb (Replaces: 8170385) |
|
Immediately | $ 18.31 | ||||
| 10 | 8170381 | Housing, Frz.lt. |
|
- | |||||
| 11 | 4344387 | Cover, Evaporator |
|
- | |||||
| 12 | 4344167 | Screw |
|
- | |||||
| 13 | 4344211 | Washer (4) |
|
- | |||||
| 14 | 8170341 | Cover, Switch |
|
- | |||||
| 16 | W11384469 | Switch, Light (Replaces: 4344571) |
|
Immediately | $ 37.23 | ||||
| 17 | 4344166 | Cover, Plug |
|
- | |||||
| 18 | 4343788 | Screw |
|
- | |||||
| 19 | 4344228 | Plug, Button |
|
- | |||||
| 20 | 4344216 | Gasket, Bottom |
|
- | |||||
| 21 | 4343886 | Gasket, Top (2) |
|
- | |||||
| 22 | 4344388 | Cover, Fan Shroud |
|
- | |||||
| 23 | 4344587 | Gasket |
|
- | |||||
| 25 | 8170387 | Evap. Fan Shroud |
|
- | |||||
| 27 | W10116797 | Fan, Evaporator (Replaces: 4344391) |
|
Immediately | $ 8.15 | ||||
| 29 | 8170388 | Grommet |
|
- | |||||
| 30 | WP12013209Q | Motor, Evaporator (Replaces: 8170389) |
|
Immediately | $ 360.16 | ||||
| 31 | 8170390 | Spacer |
|
- | |||||
| 32 | 8170391 | Screw (2) |
|
- | |||||
| 33 | 4344227 | Plug, Button |
|
- | |||||
| 34 | 4344222 | Duct, Return Air |
|
- | |||||
| 36 | 4343860 | Screw |
|
- | |||||
| 37 | 4344214 | Knob, Control |
|
- | |||||
| 38 | 4344224 | Screw |
|
- | |||||
| 39 | 8170392 | Cover, Frz. Control |
|
- | |||||
| 40 | 4343861 | Screw |
|
- | |||||
| 41 | W10752646 | Thermostat (Replaces: 4344225) |
|
Immediately | $ 143.12 | ||||
| 42 | 4344167 | Screw |
|
- | |||||
| 43 | 4344578 | Bracket, Control |
|
- | |||||
| 45 | 4344321 | Grommet |
|
- | |||||
| 47 | W10815413 | Funnel, Drain (Replaces: 4344385) |
|
Immediately | $ 49.05 | ||||
| 48 | WPM0500703 | Seal (Replaces: 4344311) |
|
$ 10.92 | |||||
| 49 | WPB8381501 | Gasket (Replaces: 4344310) |
|
$ 7.41 |
