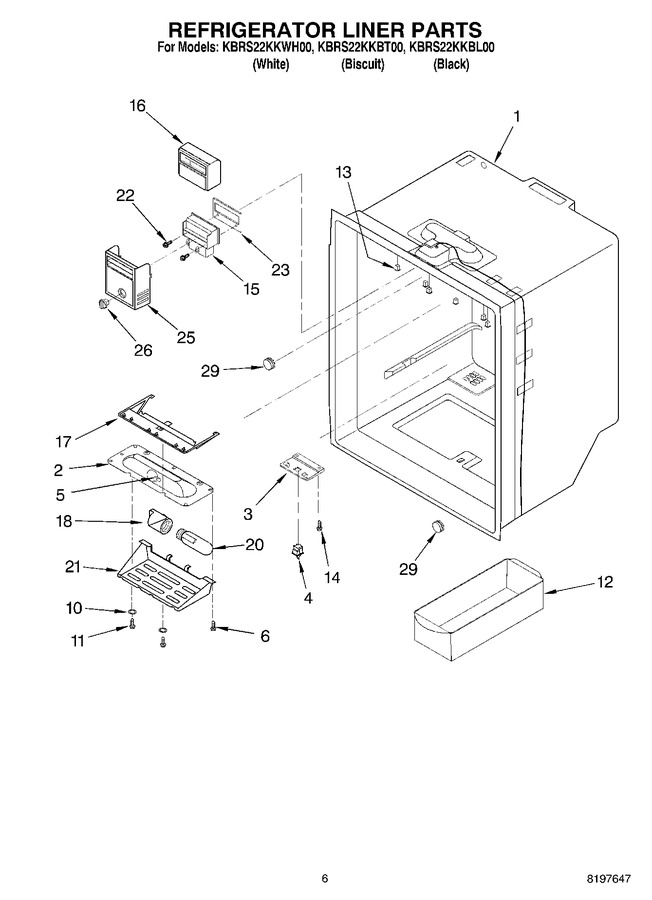

04 - Refrigerator Liner


05 - Refrigerator Door


06 - Unit


07 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	8170381		Housing, Ref. Light		Appelez-nous	-
3	4343928		Cover, Light Switch		Appelez-nous	-
4	W11384469		Switch, Light   (Replaces: 4344571)			Immediately	$ 37.23
5	4343682		Clip, Ground		Appelez-nous	-
6	67006425		Screw   (Replaces: 4344396)			Immediately	$ 6.95
10	4344211		Washer (4)		Appelez-nous	-
11	4344167		Screw (8)		Appelez-nous	-
12	W10136387A		Egg Bin   (Replaces: 8170709)				$ 18.61
13	4344321		Grommet		Appelez-nous	-
14	4344309		Screw		Appelez-nous	-
15	8170444		Control, Damper		Appelez-nous	-
16	8170727		Insulation, Damper		Appelez-nous	-
17	8170383		Shield, Light		Appelez-nous	-
18	8170384		Socket, Duel		Appelez-nous	-
20	W11679940		Light Bulb   (Replaces: 4343660)			Immediately	$ 11.30
21	8170386		Light Lens, Top		Appelez-nous	-
22	WP98165		Screw   (Replaces: 4343675)				$ 8.00
23	4343681		Gasket, Damper		Appelez-nous	-
25	8170371		Cover, Control		Appelez-nous	-
26	4344180		Knob, Control		Appelez-nous	-
29	4344241		Plug, Button		Appelez-nous	-
