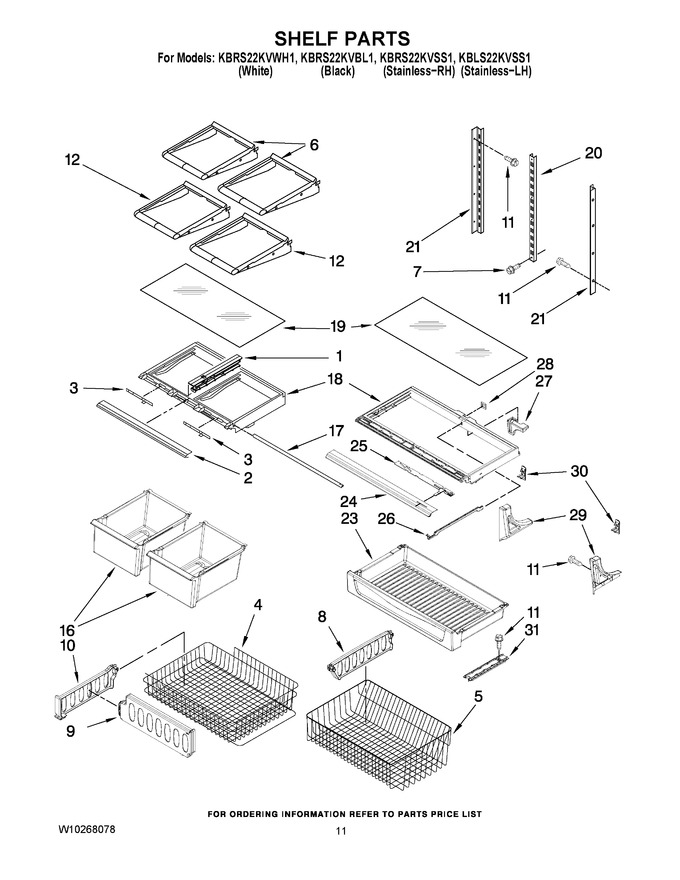

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 112.82 | ||||
| 2 | W10231483 | Trim, Crisper |
|
$ 111.44 | |||||
| 3 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 4 | W10201223 | Basket, Freezer (upper) |
|
- | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 237.48 | ||||
| 6 | W11402521 | Shelf, Glide Out (2) (Replaces: 12463310V) |
|
$ 220.55 | |||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.13 | |||||
| 8 | W10205416 | Divider, Lower Basket |
|
- | |||||
| 9 | W10311695 | Divider, Upper Basket (Replaces: W10171570) |
|
$ 28.76 | |||||
| 10 | W10241046 | Divider, (upper Basket) |
|
Immediately | $ 27.80 | ||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 12 | W11402523 | Shelf, Sta (2) (Replaces: 12463509) |
|
Immediately | $ 221.39 | ||||
| 16 | WP67002633 | Pan, Crisper (2) (Replaces: 12530505SP) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper (2) (Replaces: 12227303WD) |
|
$ 105.95 | |||||
| 18 | WPW10568041 | Frame, Crisper (2) (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper (2) (Replaces: 12204822) |
|
Immediately | $ 185.19 | ||||
| 20 | 67001073 | Ladder, Center (Replaces: 12435807) |
|
$ 54.18 | |||||
| 21 | 12710602 | Ladder, Side (2) |
|
- | |||||
| 23 | 12645023 | Pan, Pantry |
|
- | |||||
| 24 | W10656985 | Trim, Pantry (Replaces: W10231333) |
|
$ 131.12 | |||||
| 25 | 12531502 | Slide, Pantry |
|
- | |||||
| 26 | 12531401 | Bar, Pantry |
|
- | |||||
| 27 | WP12531601 | Tunnel, Pantry (Replaces: 12531601) |
|
$ 10.51 | |||||
| 28 | 12531701 | Gasket, Pantry |
|
- | |||||
| 29 | WP67001721 | Support, Pantry (lh) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 29 | WP67001722 | Support, Pantry (rh) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 30 | WP67001716 | Ladder Hook (Replaces: 12531802) |
|
Immediately | $ 10.61 | ||||
| 31 | WP67001719 | Track, Deli (Replaces: 12531901) |
|
Immediately | $ 8.56 |
