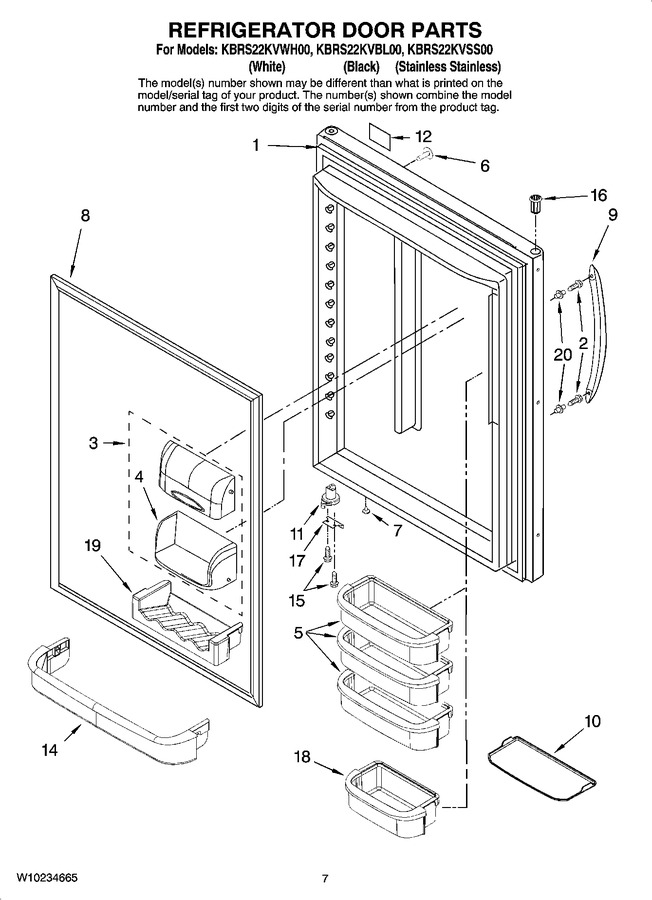

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658583WQ | Door, Refrigerator (white) |
|
- | |||||
| 1 | 12658583BQ | Door, Refrigerator (black) |
|
$ 275.39 | |||||
| 1 | 13023839SQ | Door, Refrigerator (stainless) |
|
- | |||||
| 2 | 67006901 | Screw (2) |
|
Immediately | $ 8.02 | ||||
| 3 | WP12744905 | Door, Dairy (includes 4) (Replaces: 67003819) |
|
$ 108.56 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10371195 | Bucket, Medium (3) (Replaces: 67005672) |
|
Immediately | $ 83.21 | ||||
| 6 | WP12246608 | Plug, Handle Hole (black) (Replaces: 67001131) |
|
Immediately | $ 7.76 | ||||
| 6 | WP67001130 | Plug, Handle Hole (white) (Replaces: 67001130) |
|
Immediately | $ 5.98 | ||||
| 7 | 10712401 | Plug, Button (white) |
|
$ 7.79 | |||||
| 7 | 67004838 | Plug, Button (black) |
|
$ 10.68 | |||||
| 8 | W10443313 | Gasket, Door (white) (Replaces: W10164034) |
|
$ 343.82 | |||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10131327) |
|
$ 286.97 | |||||
| 9 | WPW10314517K | Handle, Door (stainless) (Replaces: W10119644) |
|
$ 231.78 | |||||
| 9 | WPW10314515 | Handle, Door (white) (Replaces: W10119642) |
|
$ 227.13 | |||||
| 9 | W10119643 | Handle, Door (black) |
|
- | |||||
| 10 | WPW10450021 | Gripper, Bucket(4) (Replaces: 12567321SP) |
|
Immediately | $ 96.12 | ||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 67003638) |
|
Immediately | $ 7.76 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 86.02 | |||||
| 12 | WPW10243393 | Nameplate (Replaces: W10046670) |
|
$ 66.65 | |||||
| 14 | 12690502 | Retainer, Door |
|
$ 45.03 | |||||
| 15 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 16 | 67004978 | Bushing, Door (black) |
|
$ 21.05 | |||||
| 16 | WP67004977 | Bushing, Door (white) (Replaces: 67004977) |
|
$ 7.81 | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 65.99 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 18 | 12643911SP | Bucket, Short |
|
$ 43.60 | |||||
| 19 | WP67005626 | Caddy, Can (Replaces: 67005626) |
|
$ 77.61 | |||||
| 20 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 11.96 |
