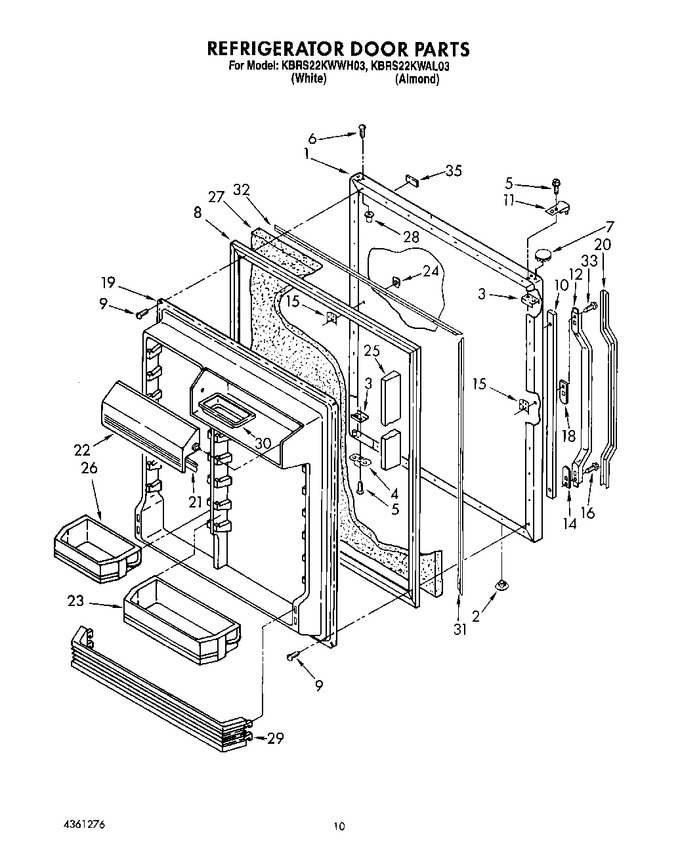

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110304		Panel, Refrigerator Door (white)		Appelez-nous	-
1	1110306		Panel, Refrigerator Door (almond (also Order Item 27))		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1125925		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	2161520		Retainer, Insert		Appelez-nous	-
11	1107236		End Cap, Handle		Appelez-nous	-
12	1126494		Handle		Appelez-nous	-
14	2161510		Spacer, Handle		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
18	2161521		Spacer, Handle		Appelez-nous	-
19	1117932		Interior Door Panel		Appelez-nous	-
20	1126499		Insert, Handle (almond)		Appelez-nous	-
20	1126498		Insert, Handle (white)		Appelez-nous	-
21	1125695		Gasket, Utility Door		Appelez-nous	-
22	1125733		Utility Door (includes Item 21)		Appelez-nous	-
23	1125555		Shelf Bin (wide)		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
25	1126161		Dike, Panel		Appelez-nous	-
26	1125556		Shelf Bin (3)		Appelez-nous	-
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
29	1125557		Shelf Bin, Fixed		Appelez-nous	-
30	1125936		Butter, Tray		Appelez-nous	-
31	986008		Retainer, Gasket		Appelez-nous	-
32	836118		Retainer, Gasket		Appelez-nous	-
33	WP488163		Screw   (Replaces: 488540)				$ 7.92
35	1125819		Nameplate (almond)		Appelez-nous	-
35	1125818		Nameplate (white)		Appelez-nous	-
