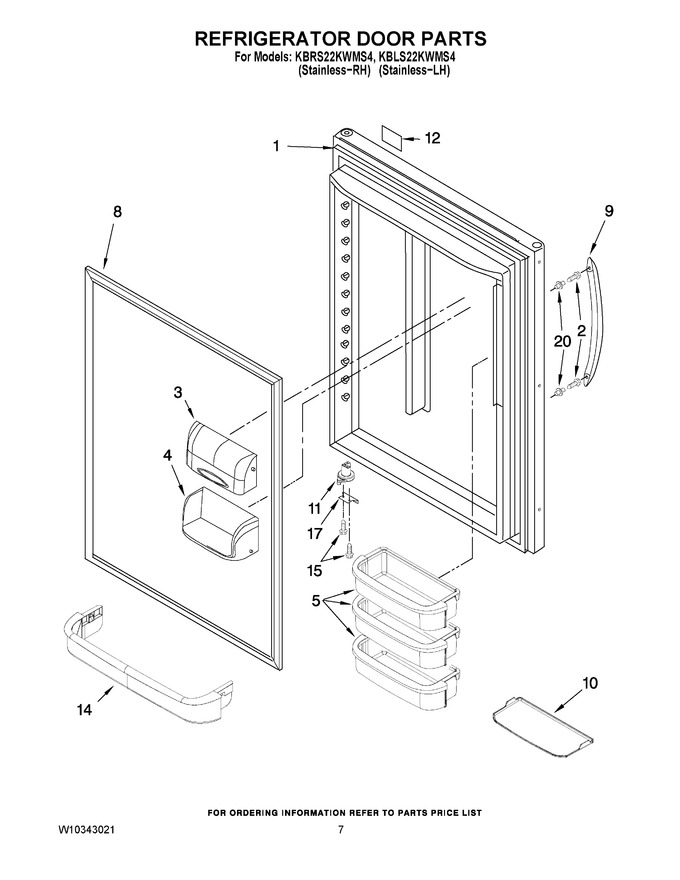

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107546SQ | Door, Refrigerator (stainless-rh) (Replaces: 13107526S) |
|
$ 1,188.95 | |||||
| 1 | 13107544SQ | Door, Refrigerator (stainless-lh) (Replaces: 13107524S) |
|
$ 1,230.77 | |||||
| 2 | W10290759 | Screw (2) |
|
$ 5.83 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10119841 | Bucket, Medium (3) (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 8 | W10443314 | Gasket, Door (apollo Grey) (Replaces: W10180621) |
|
Immediately | $ 349.07 | ||||
| 9 | WPW10314517K | Handle, Door (stainless) (Replaces: W10314517N) |
|
$ 243.37 | |||||
| 10 | W11510593 | Gripper, Bucket (medium) (Replaces: W10184031) |
|
Immediately | $ 17.43 | ||||
| 11 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 12 | WPW10243391 | Nameplate (apollo Grey) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 14 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 17 | W11401472 | Stop, Door (apollo Grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 20 | WP67006113 | Mount-handle (Replaces: 13001201) |
|
Immediately | $ 12.56 |
