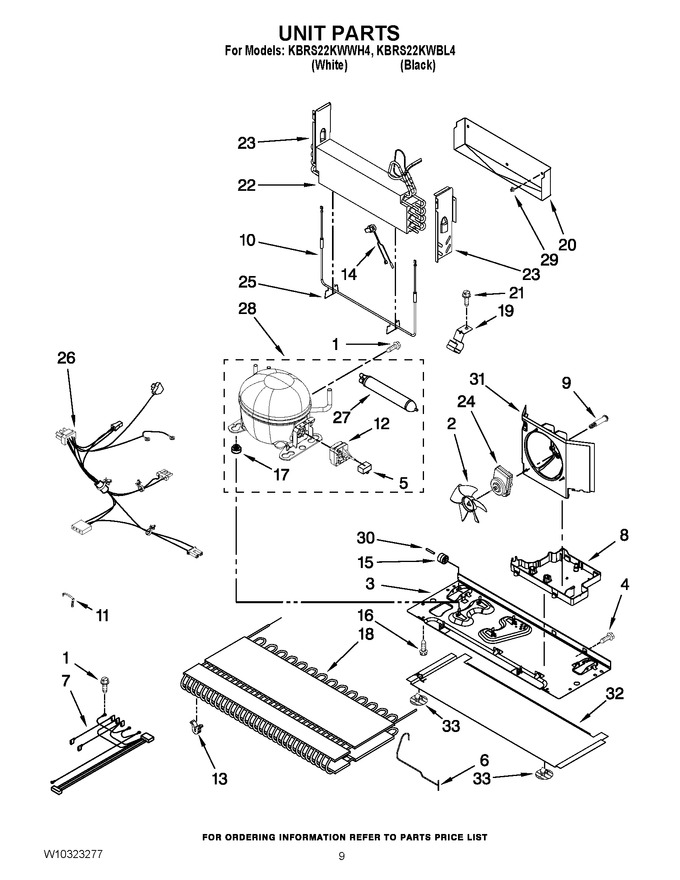

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W10480110 | Basepan (Replaces: W10210983) |
|
$ 160.74 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 5 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 6 | W10217745 | Tube, Discharge |
|
$ 33.82 | |||||
| 7 | W11260592 | Harness, Evap Heater (Replaces: W10292244) |
|
Immediately | $ 80.51 | ||||
| 8 | WPW10655367 | Pan, Drain (Replaces: W10296784) |
|
Immediately | $ 85.17 | ||||
| 9 | W10829281 | Screw, Shoulder (Replaces: W10216919) |
|
$ 12.65 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 97.71 | ||||
| 11 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.30 | ||||
| 12 | WPW10197426 | Start Device (Replaces: W10197426) |
|
$ 154.34 | |||||
| 13 | WPW10137529 | Grommet, Cond (4) (Replaces: W10137529) |
|
$ 8.34 | |||||
| 14 | WPW10165425 | Thermostat, Defrost (Replaces: 12639324SP) |
|
Immediately | $ 74.57 | ||||
| 15 | 12477102 | Roller (2) |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet (4) (Replaces: 10835903SP) |
|
Immediately | $ 7.19 | ||||
| 18 | WPW10346420 | Condenser (Replaces: W10135027) |
|
$ 280.34 | |||||
| 19 | 10547003 | Clip, Drier |
|
- | |||||
| 20 | WPW10292802 | Tray, Drip (Replaces: W10292802) |
|
$ 176.74 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 79.72 | |||||
| 22 | 12001919 | Evaporator (Replaces: 12726402) |
|
Immediately | $ 391.29 | ||||
| 23 | 12225602 | Dam (left Side) |
|
$ 14.66 | |||||
| 23 | 12225702 | Dam (right Side) |
|
$ 14.09 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: W10239053) |
|
Immediately | $ 136.84 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 26 | WPW10234024 | Harness, Unit With Power Cord (Replaces: W10234024) |
|
$ 293.67 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10130129 | Compressor (includes Items 11,12,17,27) |
|
- | |||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| 30 | 67006434 | Axle, Roller (2) (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 31 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 79.66 | |||||
| 32 | W10206337 | Extension, Basepan |
|
- | |||||
| 33 | W10206339 | Fastener, Basepan |
|
$ 10.69 | |||||
| NI | N/P | Refrigerant Charge (5.25 Ozs. (r-134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 91.35 |
