SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet And Breaker Trim


03 - Top Grille And Unit Cover


04 - Liner


05 - Refrigerator Shelf


06 - Freezer Door And Basket


07 - Refrigerator Door


08 - Upper Unit


09 - Lower Unit And Tube


10 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

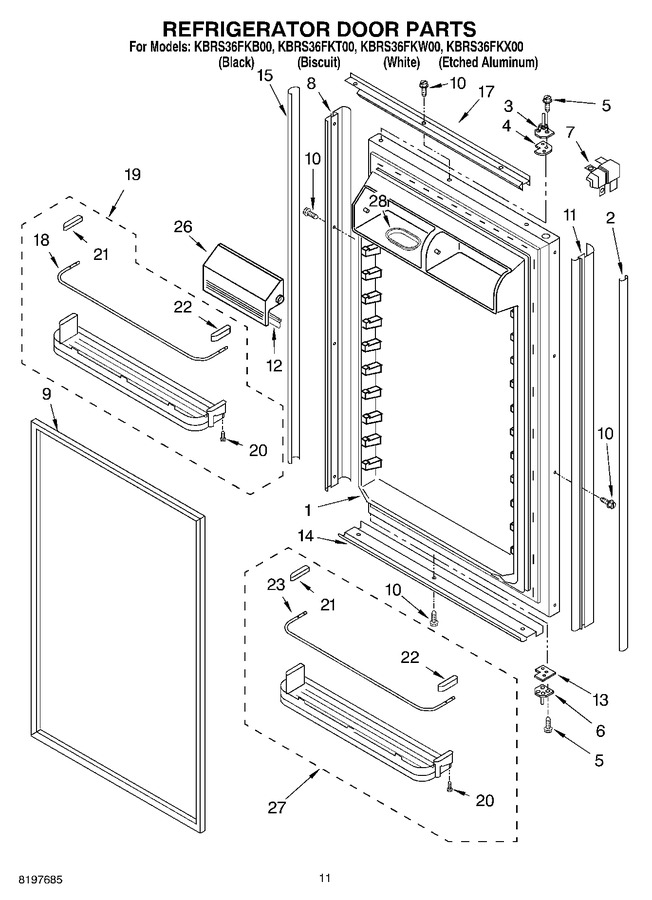

1	2188600		Refrigerator Door (includes Item 9)		Appelez-nous	-
2	2006337		Cover-trim, Handle (etched Aluminum)		Appelez-nous	-
2	2006338		Cover-trim, Handle (white)		Appelez-nous	-
2	2006340		Cover-trim, Handle (biscuit)		Appelez-nous	-
2	2006341		Cover-trim, Handle (black)		Appelez-nous	-
3	2005171		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-hinge, Top		Appelez-nous	-
5	W11474472		Screw, 10-32 X 3/4   (Replaces: 489282)			Immediately	$ 8.02
6	2003986		Hinge Assembly, Bottom		Appelez-nous	-
7	2207457		Corner Trim (chrome)				$ 57.12
7	2006273		Trim, Corner (black)		Appelez-nous	-
7	2006272		Trim, Corner (biscuit)		Appelez-nous	-
7	2006270		Trim, Corner (white)				$ 188.95
8	2005176		Trim-door, Side (etched Aluminum)		Appelez-nous	-
8	2006275		Trim-door, Side (black)		Appelez-nous	-
8	2006274		Trim-door, Side (biscuit)		Appelez-nous	-
8	2005389		Trim-door, Side (white)		Appelez-nous	-
9	2188532		Door Gasket, Magnetic		Appelez-nous	-
10	8281253		Screw 8-15 X 1/2 (biscuit)		Appelez-nous	-
10	WP8281250		Screw 8-15 X 1/2 (stainless Steel)   (Replaces: 8281250)				$ 10.88
10	W10825422		Screw 8-15 X 1/2 (white)   (Replaces: 8281251)				$ 10.82
10	W10851443		Screw 8-15 X 1/2 (black)   (Replaces: 8281252)			Immediately	$ 7.69
11	2006295		Handle, Door (biscuit)		Appelez-nous	-
11	2006296		Handle, Door (black)		Appelez-nous	-
11	2005178		Handle, Door (etched Aluminum)		Appelez-nous	-
11	2005391		Handle, Door (white)		Appelez-nous	-
12	2005982		Gasket (2)		Appelez-nous	-
13	2003982		Spacer-hinge, Bottom		Appelez-nous	-
14	2006283		Trim-door, Bottom (biscuit)		Appelez-nous	-
14	2005177		Trim-door, Bottom (etched Aluminum)				$ 168.70
14	2005390		Trim-door, Bottom (white)		Appelez-nous	-
14	2006284		Trim-door, Bottom (black)		Appelez-nous	-
15	2006336		Cover-trim, Side (black)		Appelez-nous	-
15	2006332		Cover-trim, Side (etched Aluminum)		Appelez-nous	-
15	2006333		Cover-trim, Side (white)		Appelez-nous	-
15	2006335		Cover-trim, Side (biscuit)		Appelez-nous	-
17	2006287		Trim-door, Top (biscuit)		Appelez-nous	-
17	2005388		Trim-door, Top (white)		Appelez-nous	-
17	2005175		Trim-door, Top (etched Aluminum)		Appelez-nous	-
17	2006288		Trim-door, Top (black)		Appelez-nous	-
18	2005482		Tube, Door Shelf		Appelez-nous	-
19	2005417		Shelf, Door (2)		Appelez-nous	-
20	WP681249		Screw, 8-18 X .750   (Replaces: 489276)			Immediately	$ 7.86
21	2005542		End Cap, Left		Appelez-nous	-
22	2005541		End Cap, Right		Appelez-nous	-
23	2006152		Tube, Door Shelf (gallon)		Appelez-nous	-
26	2005983		Door, Utility Bin (2) (includes Item 12)		Appelez-nous	-
27	2006154		Door Shelf, Gallon		Appelez-nous	-
28	2165792		Tray, Butter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
