Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2300083 Refrigerator Door (includes Item 9) Appelez-nous -
2 2006341 Trim Cover, Handle (black) Appelez-nous -
2 2006337 Trim Cover, Handle (etched Aluminum) Appelez-nous -
3 2266912 Hinge Assembly, Top Special Order $ 44.22

4 2256381 Spacer-hinge, Top Special Order $ 24.49

5 W11474472 Screw, 10-32 X 3/4   (Replaces: 489282) In-Stock Immediately $ 8.63

6 2302927 Hinge Assembly, Bottom Special Order $ 62.40

7 2207457 Corner Trim (chrome) Special Order $ 57.12

7 2006273 Corner Trim (black) Appelez-nous -
8 2005176 Door Trim, Side (etched Aluminum) Appelez-nous -
8 2006275 Door Trim, Side (black) Appelez-nous -
9 2302709 Door Gasket, Magnetic   (Replaces: 2300184) Special Order $ 328.30

11 2006296 Handle, Door (black) Appelez-nous -
11 2005178 Handle, Door (etched Aluminum) Appelez-nous -
12 2005982 Gasket (2) Appelez-nous -
13 2257647 Spacer-hinge, Bottom Appelez-nous -
14 2006284 Door Trim, Bottom (black) Appelez-nous -
14 2005177 Door Trim, Bottom (etched Aluminum) Special Order $ 168.70

15 W10851443 Screw 8-15 X 1/2 (black)   (Replaces: 8281252) In-Stock Immediately $ 8.13

15 WP8281250 Screw 8-15 X 1/2 (stainless Steel)   (Replaces: 8281250) Special Order $ 11.42

17 2005175 Door Trim, Top (etched Aluminum) Appelez-nous -
17 2006288 Door Trim, Top (black) Appelez-nous -
18 2005482 Tube, Door Shelf Appelez-nous -
19 2005417 Shelf, Door (2) Appelez-nous -
20 WP681249 Screw, 8-18 X 3/4   (Replaces: 489276) In-Stock Immediately $ 8.25

21 2005542 End Cap, Left Appelez-nous -
22 2005541 End Cap, Right Appelez-nous -
23 2006152 Tube, Door Shelf (gallon) Appelez-nous -
24 2006336 Trim Cover (black) Appelez-nous -
24 2006332 Trim Cover (etched Aluminum) Appelez-nous -
26 2005983 Door, Utility Bin (2) (includes Item 12) Appelez-nous -
27 2006154 Door Shelf, Gallon Appelez-nous -
28 2165792 Butter Tray Appelez-nous -

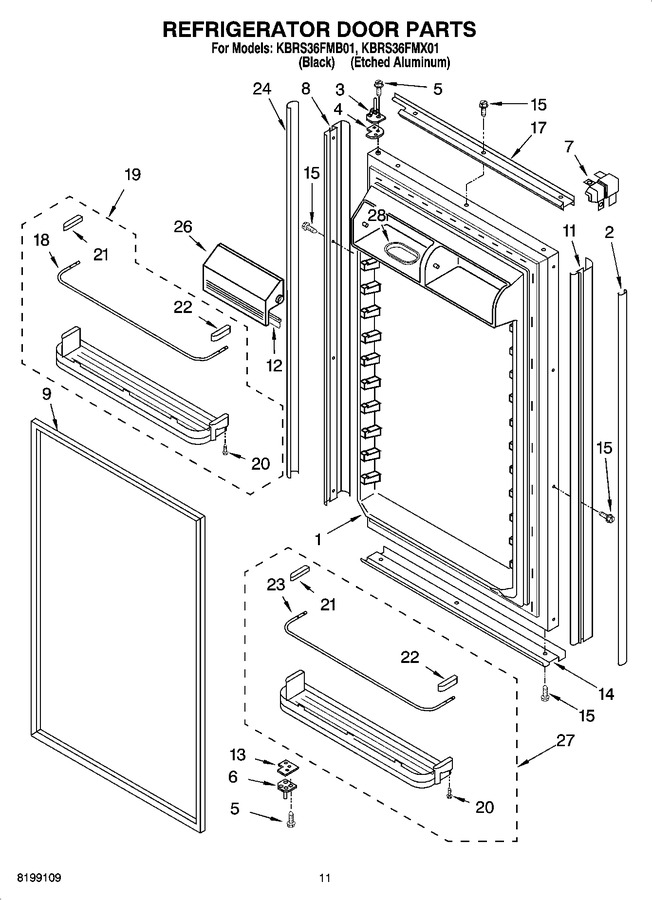

    View Diagram in Separate Window     Print Icon   Print Part List
