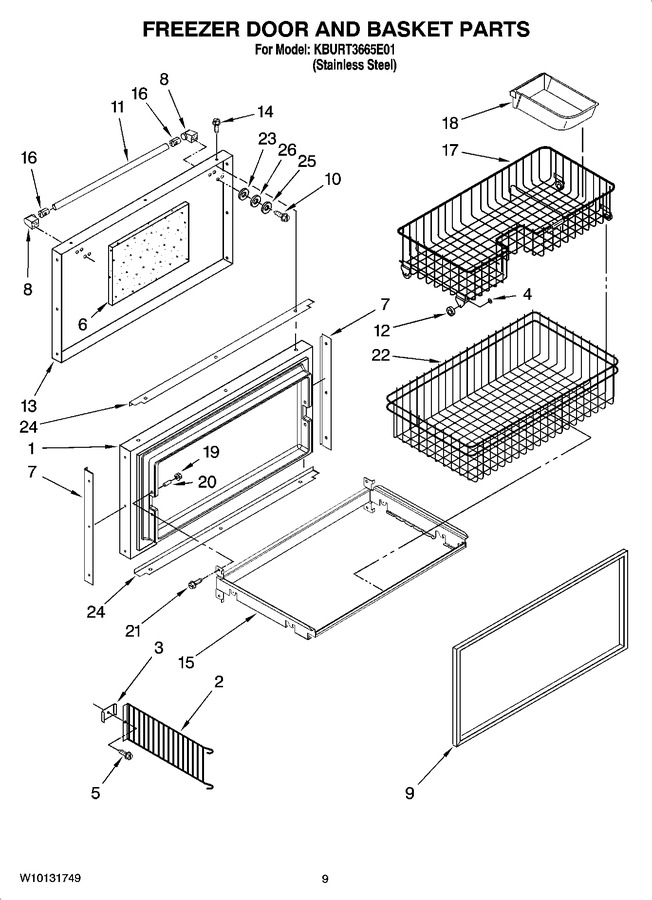

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2300085		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2204525SI		Divider, Basket		Appelez-nous	-
3	2207429SI		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 14.04
5	3190699		Screw		Appelez-nous	-
6	W10127976		Filler, Door		Appelez-nous	-
7	2300025		Spacer, Door Edge Side (2)		Appelez-nous	-
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 307.89
10	WP308544		Screw (2)   (Replaces: 308544)			Immediately	$ 8.30
11	W10122858		Handle, Door		Appelez-nous	-
12	W11214482		Roller   (Replaces: 2204542)				$ 101.03
13	W10124231		Skin, Door		Appelez-nous	-
14	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
15	2257426		Bracket Assembly, Freezer Basket		Appelez-nous	-
16	W10122448		Sleeve, Threaded		Appelez-nous	-
17	2257442SI		Basket, Upper		Appelez-nous	-
18	2266804		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2257331SI		Basket, Freezer Lower		Appelez-nous	-
23	W10121741		Washer, Handle (2)		Appelez-nous	-
24	2300027		Spacer, Door Edge Bottom & Top		Appelez-nous	-
25	487944		Washer (2)		Appelez-nous	-
26	3400961		Washer (2)		Appelez-nous	-
