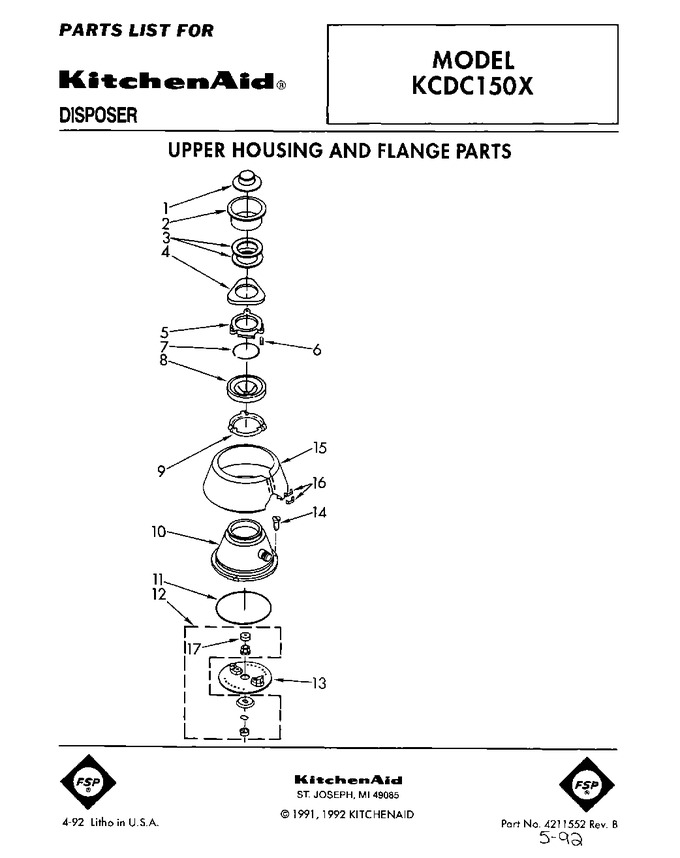

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211300		Stopper Assembly				$ 27.11
2	4211301		Flange, Strainer				$ 81.01
3	WP4211302		Seal, Sink Flange   (Replaces: 4211302)				$ 8.58
4	4211303		Flange, Backup		Appelez-nous	-
5	4211304		Flange, Mounting				$ 137.21
6	4211305		Screw, Backup (3)				$ 14.11
7	4211306		Ring, Retaining				$ 10.56
8	4211615		Gasket, Mounting   (Replaces: 4211307)				$ 27.96
9	4211308		Flange, Body		Appelez-nous	-
10	4211548		Container, Body Assembly		Appelez-nous	-
11	4211310		O-ring		Appelez-nous	-
12	4211578		Kit, Sleeve And Seal (includes Nut, Slinger & Sleeve)   (Replaces: 4211311)				$ 124.78
13	4211342		Shredder Assembly, Rotating		Appelez-nous	-
14	4211335		Bolt, Thru (4)		Appelez-nous	-
15	4211547		Shell, Trim		Appelez-nous	-
16	4211339		Clip, Trim Shell		Appelez-nous	-
17	4211578		Plug   (Replaces: 4211341)				$ 124.78

    View Diagram in Separate Window       Print Part List
