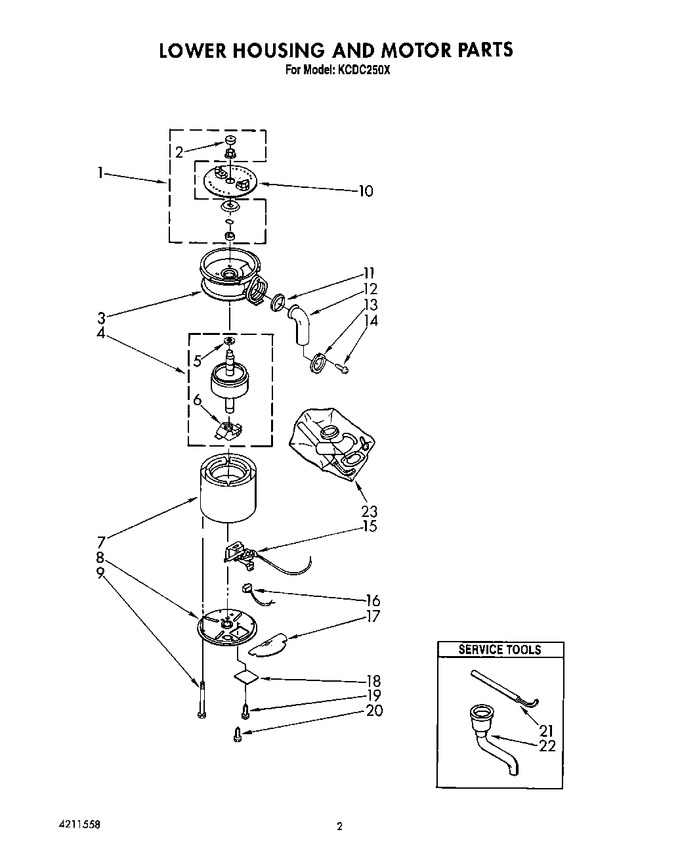

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve And Seal (includes Plug, Nut, Washer, Slinger And Sleeve)   (Replaces: 4211311)				$ 124.78
2	4211578		Plug   (Replaces: 4211341)				$ 124.78
3	4211492		End Bell Assembly, Upper				$ 164.46
4	4211557		Rotor And Shaft Assembly		Appelez-nous	-
5	4211321		Washer		Appelez-nous	-
6	4211322		Centrifugal Actuator Assembly				$ 103.67
7	4211556		Stator Assembly		Appelez-nous	-
8	4211515		End Frame Assembly, Lower		Appelez-nous	-
9	4211348		Bolt, Thru (4)		Appelez-nous	-
10	4211342		Shredder		Appelez-nous	-
11	4211344		Gasket, Tailpipe				$ 5.83
12	4211317		Tailpipe				$ 82.65
13	4211345		Flange, Tailpipe				$ 6.40
14	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
15	8174312		Switch Assembly, Start   (Replaces: 4211324)				$ 298.69
16	882726		Protector, Overload   (Replaces: 4211549)		Appelez-nous	-
17	4211326		Shield, Wire		Appelez-nous	-
18	4211328		Cover, Terminal		Appelez-nous	-
19	WP7101P246-60		Screw   (Replaces: 4211329)				$ 8.24
20	4211330		Screw, Tailpipe		Appelez-nous	-
21	WP8174310		Emergency, Wrench Assembly   (Replaces: 4211435)				$ 22.35
22	4211396		Adapter, Sink Assembly		Appelez-nous	-
23	4211565		Kit, Instruction (includes Nos. 11, 12, 13, 14, 21, Instructions And Use And Care Guide)		Appelez-nous	-
	LIT4211550		Guide, Use And Care		Appelez-nous	-
	LIT4211558		Repair Parts List		Appelez-nous	-
	LIT4211551		Instructions, Installation		Appelez-nous	-
