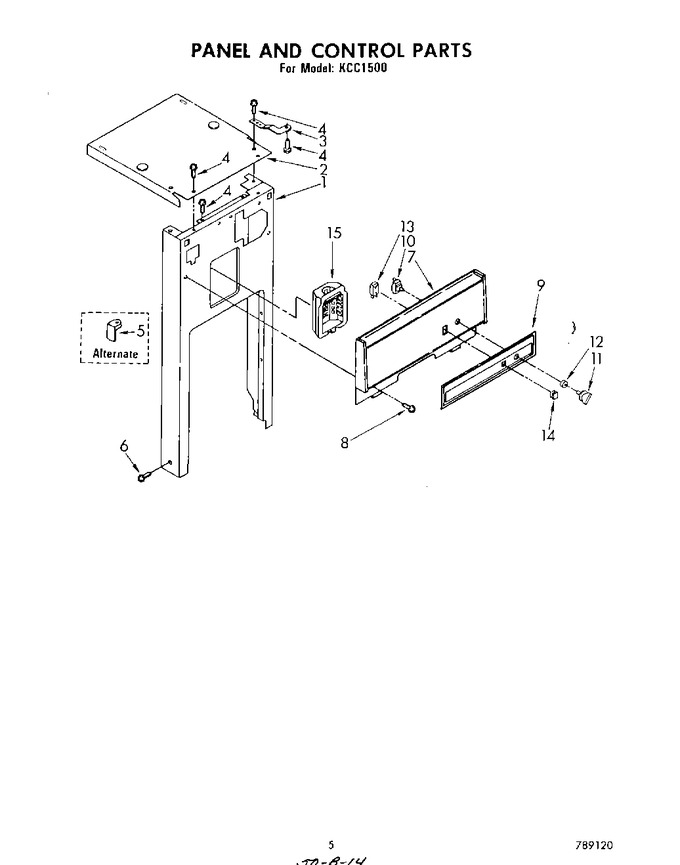

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	608778		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top (recessed)   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 608785)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 608784)			Immediately	$ 24.48
4	WP302868		Screw, 8-18 X 1/2   (Replaces: 780138)			Immediately	$ 8.18
5	WP780239		Bracket, Mounting (2) (auxiliary)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	608768		Escutcheon		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	780270		Insert, Escutcheon		Appelez-nous	-
10	675382		Switch, Rotary Start-run   (Replaces: 608452)				$ 246.48
11	776594		Knob, Rotary Switch				$ 30.27
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
13	780181		Light, Indicator		Appelez-nous	-
14	780182		Lens, Indicator		Appelez-nous	-
15	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
15	261888		Avocado		Appelez-nous	-
15	285006		Paint, Spray 13 Oz. (black)				$ 59.89
15	261886		Coffee		Appelez-nous	-
15	261890		Harvest Gold		Appelez-nous	-
15	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
15	675167		Primer (tan)		Appelez-nous	-
15	978726		Stanford Brown		Appelez-nous	-
15	285365		Toast		Appelez-nous	-
15	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
15	608533		Compartment, Air Flow		Appelez-nous	-
15	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
15	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
15	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
15	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
15	DD81-03505A		Paint, Touch-up 1/2 Oz. (stanford Brown)   (Replaces: 72106)				$ 121.47
15	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
15	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
15	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
15	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81

    View Diagram in Separate Window       Print Part List
