SELECT A DIAGRAM

01 - Cover


02 - Motor And Drive, Lit/optional


03 - Frame


04 - Power Screw And Ram

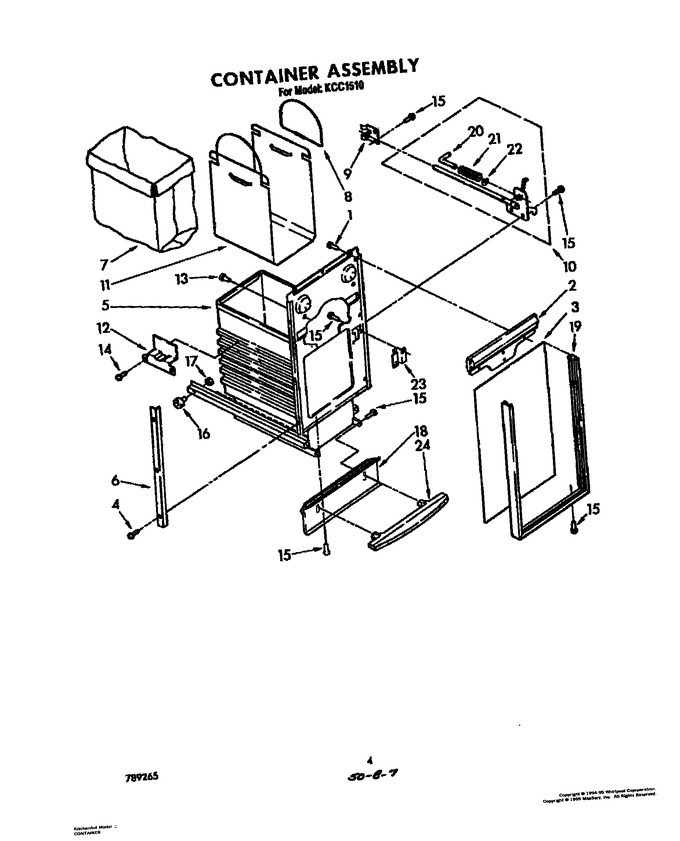

05 - Container


06 - Panel And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
2	777762		Panel, Container Front (almond & Harvest Gold)		Appelez-nous	-
2	777941		Panel, Container Front (black & White)				$ 36.40
2	WP608732		Handle, Container Panel, Container   (Replaces: 608769)				$ 264.39
4	776191		Screw, 6-20 X 3/8		Appelez-nous	-
5	882666		Container Assembly		Appelez-nous	-
6	608051		Plate, Trim				$ 26.10
7	13030RP		Carrier, Bag (includes Illus. 8)   (Replaces: 776989)			Immediately	$ 58.33
8	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 36.99
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 775740)				$ 182.53
11	675186		Bag, Refuse (12 Pk)				$ 22.83
12	776523		Cam, Actuator				$ 21.17
13	775785		Bumper, Container (2)		Appelez-nous	-
14	WP489069		Screw, 8-18 X 1/2   (Replaces: 777465)			Immediately	$ 8.40
15	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
16	WP9871602		Container, Bearing Roller   (Replaces: 776261)				$ 13.87
17	WP776356		Locknut, 3/8-24   (Replaces: 776356)				$ 8.53
18	777329		Toe Plate		Appelez-nous	-
19	777345		Trim, Container (front)		Appelez-nous	-
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 93.80
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 62.39
24	882657		Pedal, Foot   (Replaces: 777172)				$ 156.63

    View Diagram in Separate Window       Print Part List
