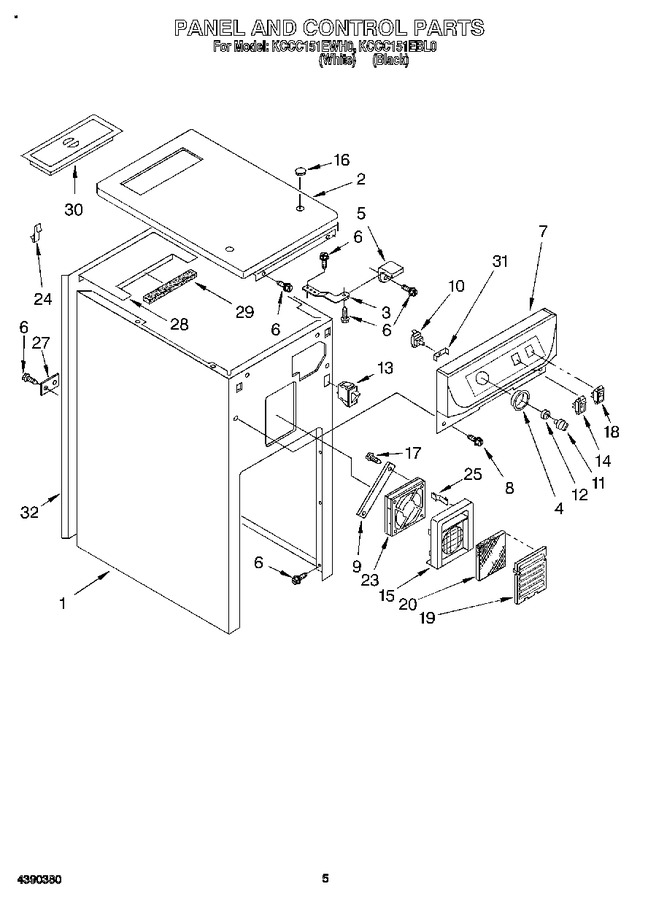

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9870921		Cabinet (black)		Appelez-nous	-
1	WP9870913		Cabinet (white)   (Replaces: 9870913)				$ 298.34
2	9871075		Top, Cabinet (white)		Appelez-nous	-
2	9871074		Top, Cabinet (black)		Appelez-nous	-
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 9870158)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 9870157)			Immediately	$ 24.48
4	780387		Bezel (black)		Appelez-nous	-
4	4153253		Bezel (white)		Appelez-nous	-
5	WP780239		Bracket, Retainer (alternate) (2)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	9871348		Escutcheon, Control (black)		Appelez-nous	-
7	9871347		Escutcheon, Control (white)		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	4152703		Strap, Fan				$ 75.32
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	WP9871800		Knob, Rotary Switch (white)   (Replaces: 9871364)				$ 64.70
11	WP9871800		Knob, Rotary Switch (black)   (Replaces: 9871365)				$ 64.70
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
13	WP4387911		Switch, Drawer   (Replaces: 4152058)			Immediately	$ 41.64
14	WP9872161		Switch, Rocker (black)   (Replaces: 9871105)				$ 139.86
14	WP9872161		Switch, Rocker (white)   (Replaces: 9871087)				$ 139.86
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
16	W11705838		Plug, Hole (black)   (Replaces: 9870905)		Appelez-nous	-
16	4151479		Plug, Hole (white)		Appelez-nous	-
17	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
18	9871104		Switch, Air Freshener (black)		Appelez-nous	-
18	9871086		Switch, Air Freshener (white)		Appelez-nous	-
19	9870911		Cover, Air Freshener (white)				$ 49.04
19	WP9871099		Cover, Air Freshener (black)   (Replaces: 9871099)				$ 71.65
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 18.60
23	9871893		Fan, Filter   (Replaces: 9871051)				$ 348.34
24	4151897		Clip, Wire				$ 7.40
25	4151897		S-clip				$ 7.40
27	775676		Plate, Power Cord		Appelez-nous	-
28	780438		Plate, Bag Storage		Appelez-nous	-
29	776780		Barrier, Glass		Appelez-nous	-
30	00608739		Lid, Bag Storage (white)   (Replaces: 608739)				$ 300.66
30	608765		Lid, Bag Storage (black)		Appelez-nous	-
31	780417		Bracket, Switch		Appelez-nous	-
32	9870863		Panel, Back		Appelez-nous	-
