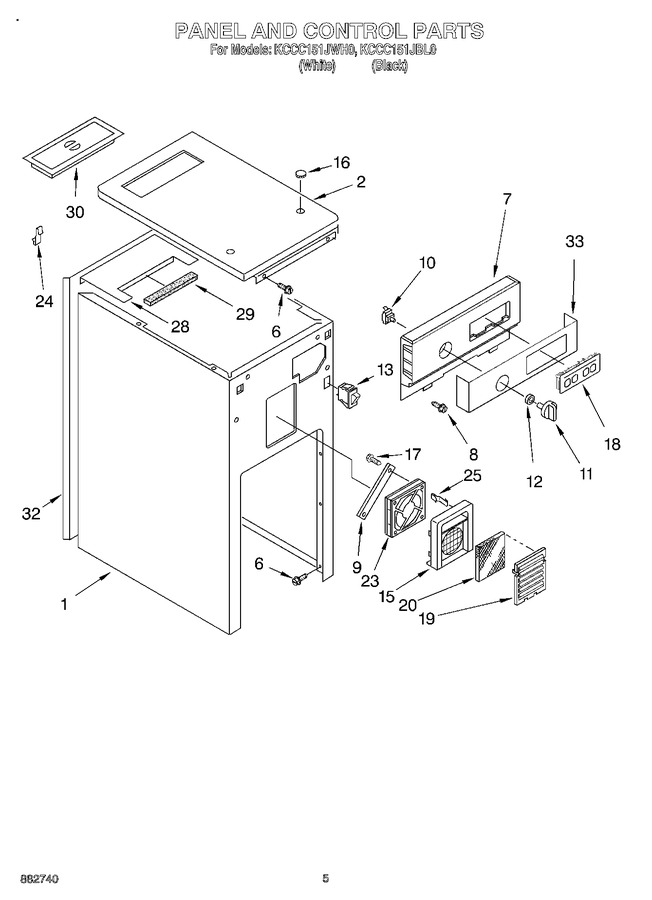

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9870913		Cabinet (white)   (Replaces: 9870913)				$ 298.34
1	9870921		Cabinet (black)		Appelez-nous	-
2	9871074		Top, Cabinet (black)		Appelez-nous	-
2	9871075		Top, Cabinet (white)		Appelez-nous	-
6	WP489478		Screw, 8 X 1/2ab (6)   (Replaces: 489478)				$ 8.18
7	9871747		Escutcheon, Control (black)		Appelez-nous	-
7	9871746		Escutcheon, Control (white)		Appelez-nous	-
8	246131		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	4152703		Strap, Fan				$ 75.32
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	WP9871800		Knob, Rotary Switch (black)   (Replaces: 9871800)				$ 64.70
11	WP9871799		Knob, Rotary Switch (white)   (Replaces: 9871799)				$ 67.23
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
13	WP4387911		Switch, Drawer   (Replaces: 4152058)			Immediately	$ 41.64
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
16	4151479		Plug, Hole (white)		Appelez-nous	-
16	W11705838		Plug, Hole (black)   (Replaces: 9870905)		Appelez-nous	-
17	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
18	9871767		Switch Assembly (black)				$ 27.77
18	9871766		Switch Assembly (white)				$ 38.29
19	9870911		Cover, Air Freshener (white)				$ 49.04
19	WP9871099		Cover, Air Freshener (black)   (Replaces: 9871099)				$ 71.65
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 18.60
23	9871893		Fan, Filter   (Replaces: 9871051)				$ 348.34
24	4151897		Clip, Wire				$ 7.40
25	4151897		S-clip				$ 7.40
28	780438		Plate, Bag Storage		Appelez-nous	-
29	776780		Barrier, Glass		Appelez-nous	-
30	00608739		Lid, Bag Storage (white)   (Replaces: 608739)				$ 300.66
30	608765		Lid, Bag Storage (black)		Appelez-nous	-
32	9870863		Panel, Back		Appelez-nous	-
33	9871753		Insert, Escutcheon (black)		Appelez-nous	-
33	9871752		Insert, Escutcheon (white)		Appelez-nous	-
