Diagram for 01 - Upper Housing And Flange Parts
01 - Upper Housing And Flange Parts

Diagram for 02 - Lower Housing And Motor Parts
02 - Lower Housing And Motor Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10128498 Guide, Use & Care Appelez-nous -
1 W10280320 Repair Parts List Appelez-nous -
2 4211300 Stopper Assembly Special Order $ 27.11

3 8174306 Mounting Assembly Appelez-nous -
4 4211606 Gasket, Fiber Special Order $ 22.21

5 4211615 Gasket, Mounting Special Order $ 27.96

6 8174341 Trim, Shell Asm. Appelez-nous -
7 8174342 Clip, Trim Shell Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

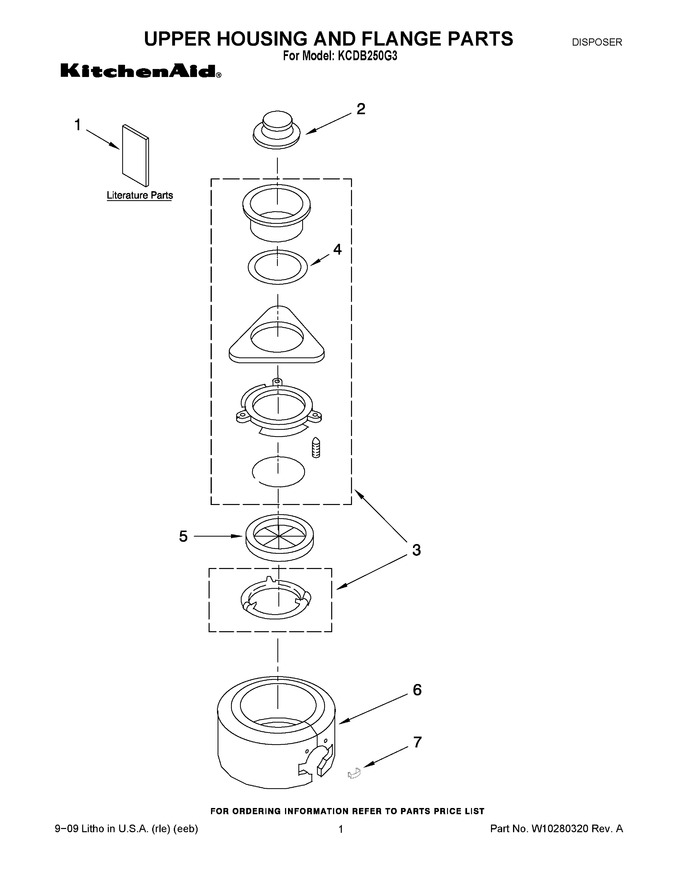

Diagram for KCDB250G3
