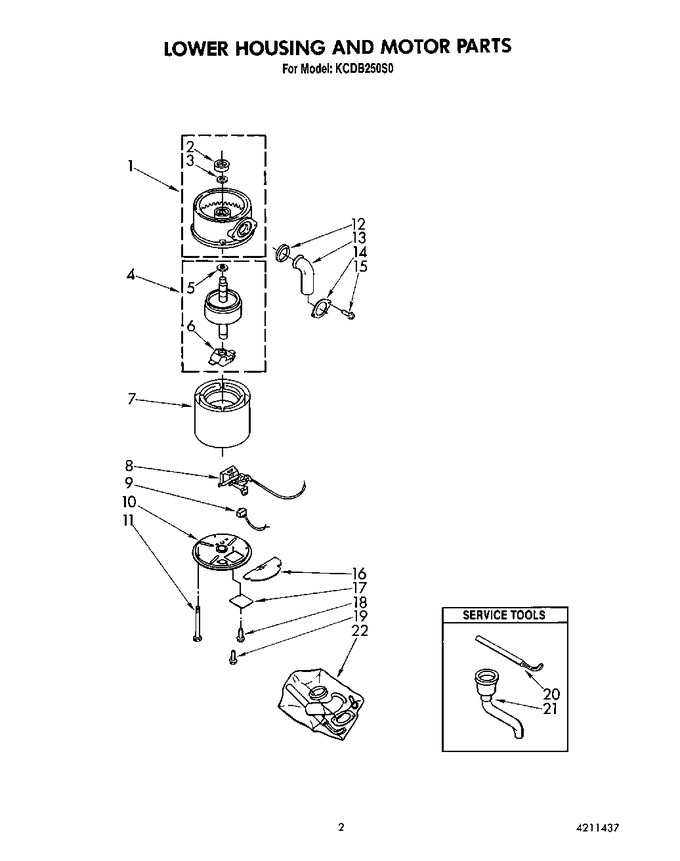

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4211313 | End Bell Assembly, Upper |
|
- | |||||
| 2 | 4211314 | Seal, Water & Oil |
|
- | |||||
| 3 | 4211315 | Washer, Thrust |
|
- | |||||
| 4 | 4211320 | Rotor & Shaft Assembly |
|
- | |||||
| 5 | 4211321 | Washer |
|
- | |||||
| 6 | 4211322 | Actuator Assembly, Centrifugal |
|
$ 103.67 | |||||
| 7 | 4211323 | Stator Assembly |
|
- | |||||
| 8 | 8174312 | Switch Assembly, Start (Replaces: 4211324) |
|
$ 298.69 | |||||
| 9 | 4211325 | Protector, Overload |
|
- | |||||
| 10 | 4211327 | End Frame Assembly, Lower |
|
- | |||||
| 11 | 4211331 | Bolt, Thru (4) |
|
- | |||||
| 12 | 4211316 | Gasket, Tailpipe |
|
- | |||||
| 13 | 4211317 | Tailpipe |
|
$ 82.65 | |||||
| 14 | 4211318 | Flange, Tailpipe |
|
- | |||||
| 15 | 4211319 | Screw, Tailpipe (2) |
|
- | |||||
| 16 | 4211326 | Shield, Wire |
|
- | |||||
| 17 | 4211328 | Cover, Terminal |
|
- | |||||
| 18 | WP7101P246-60 | Screw (Replaces: 4211329) |
|
$ 8.24 | |||||
| 19 | 4211330 | Screw, Ground |
|
- | |||||
| 20 | WP8174310 | Wrench, Emergency (Replaces: 4211397) |
|
$ 22.35 | |||||
| 21 | 4211396 | Adapter, Sink Assembly |
|
- | |||||
| 22 | 4211564 | Kit, Installation (includes No. 12, 13, 14, 15, 20, Instructions And Use And Care Guide) |
|
- | |||||
| LIT4171071 | Guide, Use And Care |
|
- | ||||||
| LIT4211437 | Repair Parts List |
|
- | ||||||
| LIT4171069 | Instructions, Installation |
|
- |
