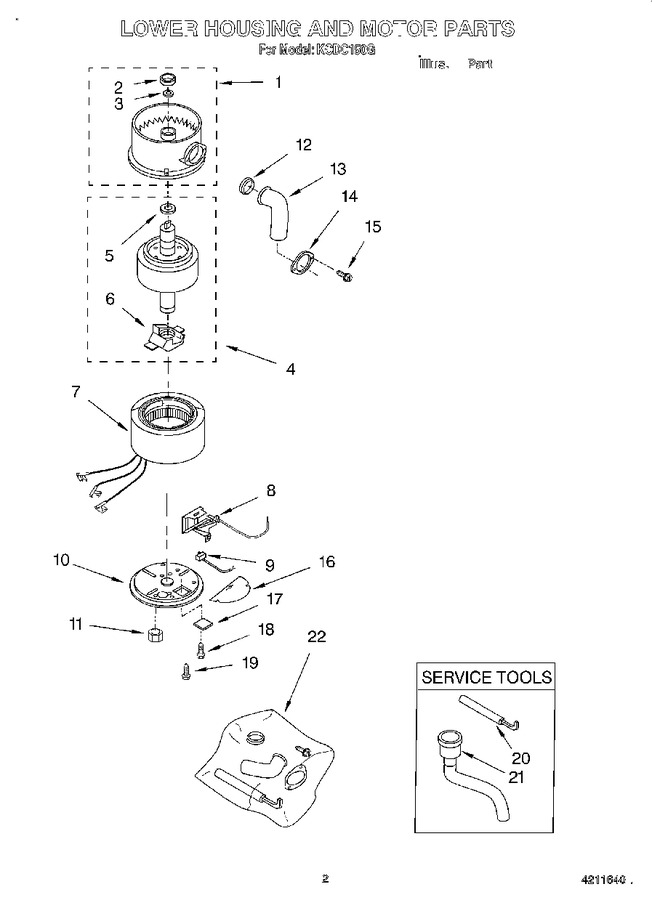

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211313		End Bell Assembly, Upper		Appelez-nous	-
2	4211314		Seal, Water & Oil		Appelez-nous	-
3	4211315		Washer, Thrust		Appelez-nous	-
4	4211651		Rotor & Shaft Assembly		Appelez-nous	-
5	4211321		Washer		Appelez-nous	-
6	4211322		Actuator Assembly, Centrifugal				$ 103.67
7	4211650		Stator Assembly		Appelez-nous	-
8	8174312		Switch Assembly, Start   (Replaces: 4211324)				$ 298.69
9	882726		Protector, Overload   (Replaces: 4211549)		Appelez-nous	-
10	8174345		End Frame Assembly, Lower   (Replaces: 4211647)		Appelez-nous	-
11	4211348		Bolt, Thru (4)		Appelez-nous	-
12	4211316		Gasket, Tailpipe		Appelez-nous	-
13	4211317		Tailpipe				$ 82.65
14	4211318		Flange, Tailpipe		Appelez-nous	-
15	4211319		Screw, Tailpipe		Appelez-nous	-
16	4211326		Shield, Wire		Appelez-nous	-
17	4211611		Cover, Terminal		Appelez-nous	-
18	WP98008545		Screw   (Replaces: 4211612)				$ 18.60
19	4211330		Screw, Ground		Appelez-nous	-
20	WP8174310		Wrench, Emergency   (Replaces: 4211397)				$ 22.35
21	4211396		Adapter, Sink Assembly		Appelez-nous	-
22	4211565		Kit, Installation (includes Nos. 12, 13, 14, 15, 20, Instructions And Use And Care Guide)		Appelez-nous	-
	LIT4211550		Guide, Use And Care		Appelez-nous	-
	LIT4211640		Repair Parts List		Appelez-nous	-
	LIT4211652		Instructions, Installation		Appelez-nous	-
