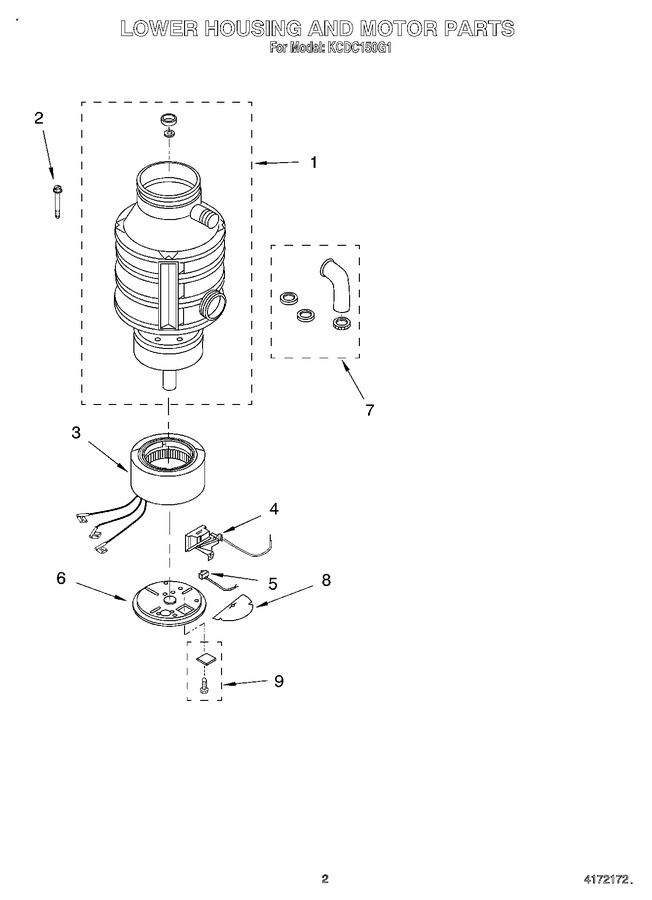

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4211645 | Bolt, Thru |
|
- | |||||
| 3 | 4211650 | Stator Assembly |
|
- | |||||
| 4 | 8174312 | Switch Assembly, Start (Replaces: 4211324) |
|
$ 298.69 | |||||
| 5 | 882726 | Protector, Overload (Replaces: 4211549) |
|
- | |||||
| 6 | 8174345 | End Frame Assembly, Lower (Replaces: 4211647) |
|
- | |||||
| 7 | 4172176 | Kit, Installation |
|
- | |||||
| 8 | 4211326 | Shield, Wire |
|
- | |||||
| 9 | 4172175 | Cover, Terminal (includes Screw) |
|
- | |||||
| LIT4211550 | Guide, Use And Care |
|
- | ||||||
| LIT4211652 | Instructions, Installation |
|
- |
