01 - Upper Housing And Flange Parts

Diagram for 02 - Lower Housing And Motor Parts
02 - Lower Housing And Motor Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4211300 Stopper Assembly Special Order $ 27.11

2 8174306 Mounting Assembly Appelez-nous -
8 4211615 Gasket, Mounting Special Order $ 27.96

11 8174346 Trim Shell Appelez-nous -
12 8174342 Clip Appelez-nous -
14 8174343 Bolt, Thru Appelez-nous -
14 N/A Following Parts Not Illustrated Appelez-nous -
14 8174350 Guide, Use & Care Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

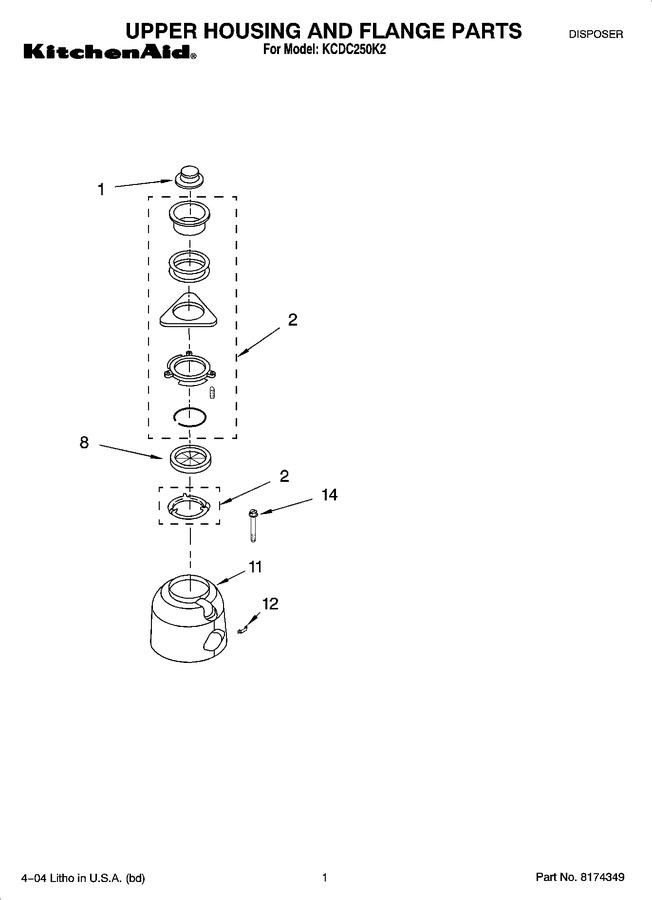

Diagram for KCDC250K2
