SELECT A DIAGRAM

01 - Section


02 - Section

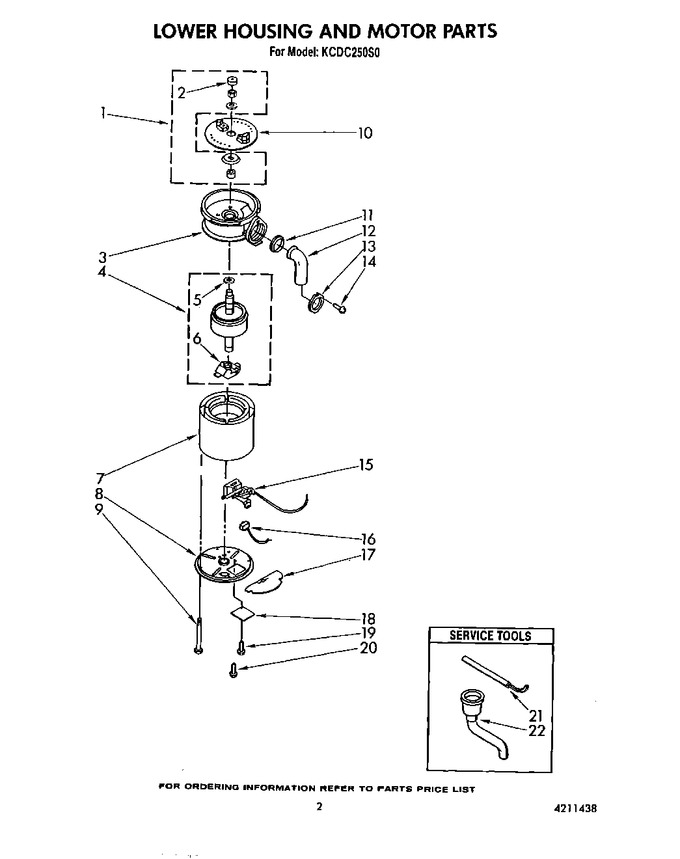

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve And Seal (includes Plug, Nut, Slinger And Sleeve)   (Replaces: 4211340)				$ 124.78
2	4211578		Plug   (Replaces: 4211341)				$ 124.78
3	4211343		End Bell Assembly (upper)		Appelez-nous	-
4	4211347		Rotor & Shaft Assembly		Appelez-nous	-
5	4211321		Washer		Appelez-nous	-
6	4211322		Assembly, Centrifugal Actuator				$ 103.67
7	4211323		Stator Assembly		Appelez-nous	-
8	4211377		End Frame Assembly (lower)		Appelez-nous	-
9	4211348		Bolt, Thru (4)		Appelez-nous	-
10	4211342		Shredder Assembly, Rotating		Appelez-nous	-
11	4211344		Gasket, Tailpipe				$ 5.83
12	4211317		Tailpipe				$ 82.65
13	4211345		Flange, Tailpipe				$ 6.40
14	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
15	8174312		Switch Assembly, Start   (Replaces: 4211324)				$ 298.69
16	4211325		Protector, Overload		Appelez-nous	-
17	4211326		Shield, Wire		Appelez-nous	-
18	4211328		Cover, Terminal		Appelez-nous	-
19	WP7101P246-60		Screw   (Replaces: 4211329)				$ 8.24
20	4211330		Screw, Ground		Appelez-nous	-
21	WP8174310		Wrench, Emergency   (Replaces: 4211397)				$ 22.35
22	4211396		Adapter, Sink Assembly		Appelez-nous	-
	LIT4211550		Guide, Use And Care		Appelez-nous	-
	LIT4211438		Repair Parts List		Appelez-nous	-
	LIT4171069		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
