SELECT A DIAGRAM

01 - Section


02 - Section

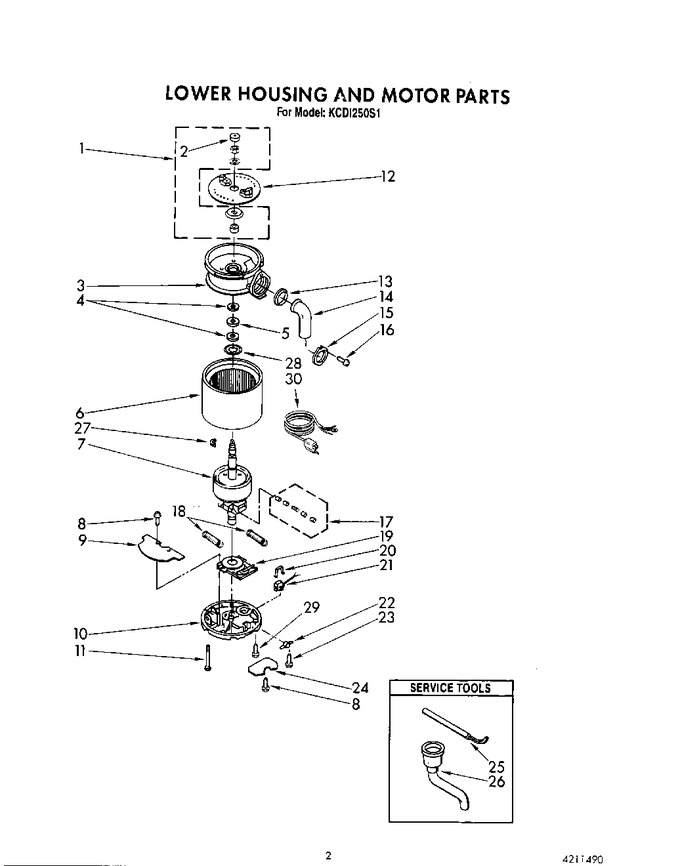

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve & Seal (includes Plug, Nut, Washer, Slinger , And Sleeve)   (Replaces: 4211311)				$ 124.78
2	4211578		Plug   (Replaces: 4211341)				$ 124.78
3	4211492		End Bell Assembly, Upper				$ 164.46
4	4211405		Washer, Thrust (3)		Appelez-nous	-
5	4211406		Washer, Rubber		Appelez-nous	-
6	4211407		Stator Assembly		Appelez-nous	-
7	4211494		Rotor And Shaft Assembly		Appelez-nous	-
8	4211380		Screw (4)		Appelez-nous	-
9	4211381		Shield, Insulation		Appelez-nous	-
10	4211470		End Frame Assembly (lower)		Appelez-nous	-
11	4211389		Bolt, Thru (4)		Appelez-nous	-
12	4211342		Shredder Assembly, Rotating		Appelez-nous	-
13	4211344		Gasket, Tailpipe				$ 5.83
14	4211317		Tailpipe				$ 82.65
15	4211345		Flange, Tailpipe				$ 6.40
16	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
17	4211468		Transfer Assembly		Appelez-nous	-
18	4211378		Spring (2)		Appelez-nous	-
19	4211469		Switch Assembly, Start		Appelez-nous	-
20	4211383		Clip, Overload		Appelez-nous	-
21	4211425		Protector, Overload		Appelez-nous	-
22	4211387		Clamp, Bx		Appelez-nous	-
23	4211388		Screw, Clamp Bx		Appelez-nous	-
24	4211391		Cover, Terminal		Appelez-nous	-
25	WP8174310		Emergency, Wrench Assembly   (Replaces: 4211435)				$ 22.35
26	4211396		Adapter, Sink Assembly		Appelez-nous	-
27	4211376		Ring, C		Appelez-nous	-
28	4211493		Cup, Washer		Appelez-nous	-
29	4211390		Screw, Ground		Appelez-nous	-
30	4211472		Plug & Cord		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
