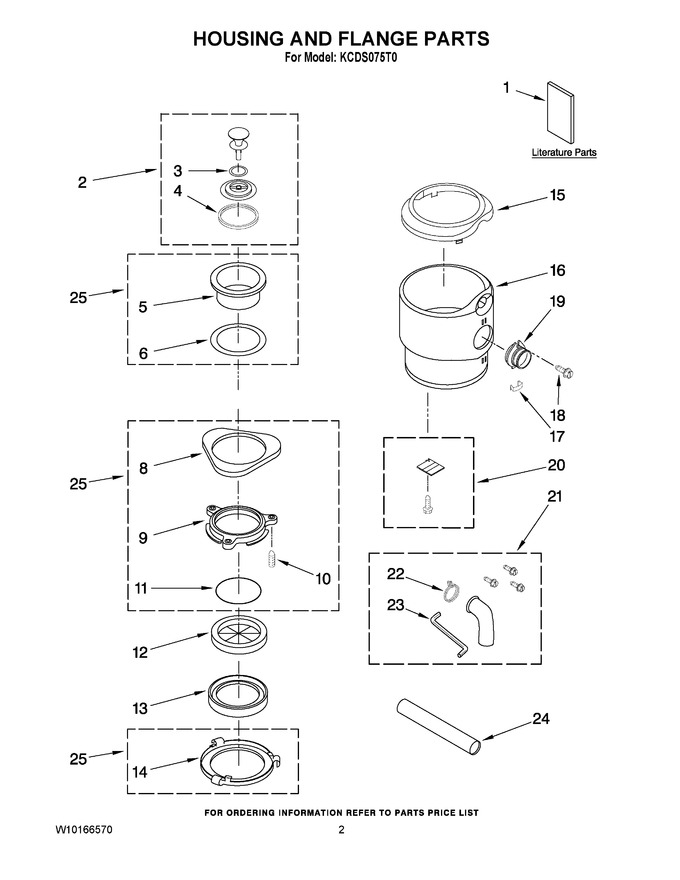

01 - Housing And Flange Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10166570		Repair Parts List		Appelez-nous	-
1	W10171100		Guide, Use & Care		Appelez-nous	-
2	WP4211398A		Stopper Assembly   (Replaces: 4211398)				$ 89.55
3	4211355		Gasket, Stopper (inner)			Immediately	$ 7.17
4	4211333		Gasket, Stopper (outer)				$ 30.86
5	W10171101		Flange, Sink		Appelez-nous	-
6	4211606		Gasket, Fiber				$ 22.21
8	W10171102		Flange, Backup		Appelez-nous	-
9	4211304		Flange, Mounting				$ 137.21
10	W10171103		Screw, Backup				$ 6.47
11	4211306		Ring, Snap				$ 10.56
12	W11087190		Baffle, Sink Guard   (Replaces: W10171104)				$ 16.16
13	W10171105		Gasket, Mounting				$ 47.57
14	4211308		Flange, Body		Appelez-nous	-
15	W10171106		Trim, Shell (cap)		Appelez-nous	-
16	W10171107		Shell, Trim		Appelez-nous	-
17	8174342		Clip		Appelez-nous	-
18	W10171108		Screw		Appelez-nous	-
19	W10352995		Coupler, Flex   (Replaces: W10171109)				$ 93.25
20	8174315		Cover, Terminal		Appelez-nous	-
21	W10171110A		Installation Kit   (Replaces: W10171110)				$ 35.15
22	W11622908		Clamp, Spring   (Replaces: W10171111)				$ 23.33
23	WP8174310		Wrench   (Replaces: 8174310)				$ 22.35
24	W10171112		Tube, Discharge				$ 35.75
25	W10179031A		Mounting Assembly   (Replaces: W10179031)				$ 86.00
NI	W11735299		Disposer, Complete   (Replaces: W10168270)				$ 794.05
