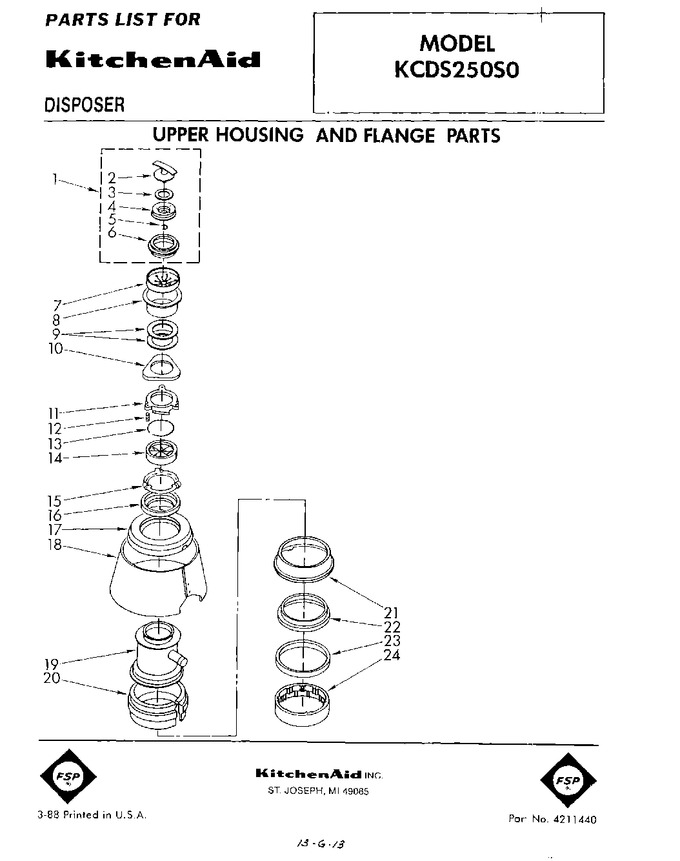

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4211398A		Stopper Assembly   (Replaces: 4211353)				$ 89.55
2	4211354		Handle, Stopper		Appelez-nous	-
3	4211355		Gasket, Stopper (inner)			Immediately	$ 7.17
4	4211356		Stopper, Body		Appelez-nous	-
5	4211357		Ring, Retaining		Appelez-nous	-
6	4211333		Gasket, Stopper (outer)				$ 30.86
7	4211358		Baffle, Removable		Appelez-nous	-
8	4211301		Flange, Strainer				$ 81.01
9	WP4211302		Gasket, Strainer Flange (2)   (Replaces: 4211302)				$ 8.58
10	4211303		Flange, Backup		Appelez-nous	-
11	4211304		Flange, Mounting				$ 137.21
12	4211305		Screw, Backup (3)				$ 14.11
13	4211306		Ring, Retaining				$ 10.56
14	WP4211334		Gasket, Mounting   (Replaces: 4211334)				$ 35.56
15	4211308		Flange, Body		Appelez-nous	-
16	4211359		Gasket, Body		Appelez-nous	-
17	4211360		Shell Assembly, Trim (top)		Appelez-nous	-
18	4211361		Band, Trim Assembly		Appelez-nous	-
19	4211362		Container, Body Assembly (includes Sound Insulation)		Appelez-nous	-
20	4211363		Insulation, Top		Appelez-nous	-
21	4211364		Body, Lower		Appelez-nous	-
22	4211365		Gasket, Shredder		Appelez-nous	-
23	4211366		Insulation, Sound		Appelez-nous	-
24	4211367		Shredder, Stationary		Appelez-nous	-
	LIT4171071		Guide, Use And Care		Appelez-nous	-
	LIT4211440		Repair Parts List		Appelez-nous	-
	LIT4171069		Instructions, Installation		Appelez-nous	-
