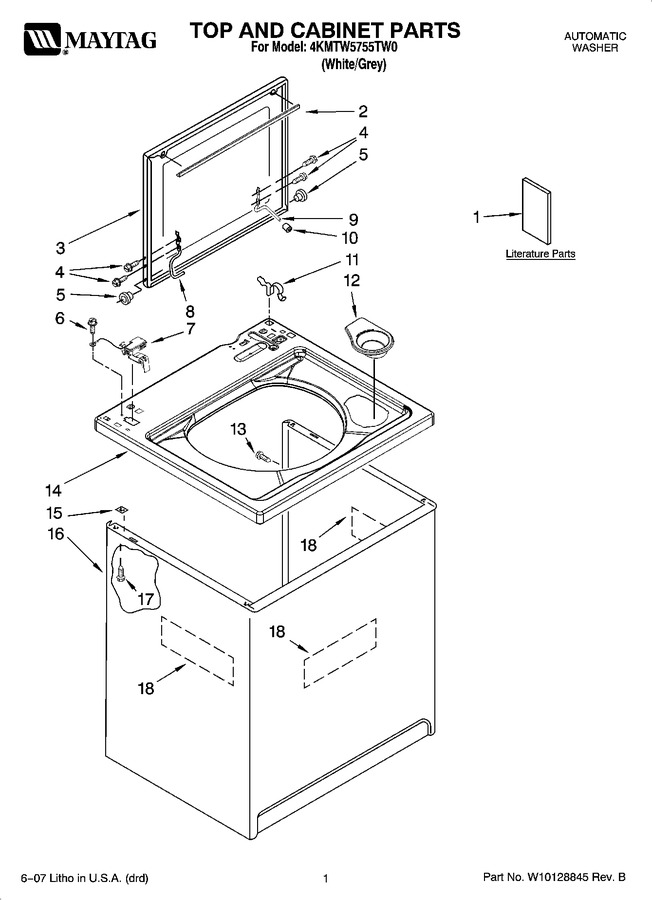

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10117896		Feature Sheet (english)		Appelez-nous	-
1	W10117057		Wiring Diagram		Appelez-nous	-
1	W10117897		Feature Sheet (arabic)		Appelez-nous	-
1	W10117890		Use & Care Guide (english)		Appelez-nous	-
1	W10117891		Use & Care Guide (arabic)		Appelez-nous	-
2	8054939		Seal, Lid				$ 50.57
3	W10093719		Lid		Appelez-nous	-
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.19
5	8319539		Bearing, Lid Hinge (2)				$ 5.51
6	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
7	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
8	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
9	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 29.56
10	19119		Bumper, Lid Hinge				$ 5.75
11	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
12	8565967		Dispenser, Bleach		Appelez-nous	-
13	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
14	8543488		Top		Appelez-nous	-
15	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
16	63424		Cabinet				$ 370.02
17	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 7.82
18	3976348		Absorber, Sound (cabinet) (3)				$ 37.92
