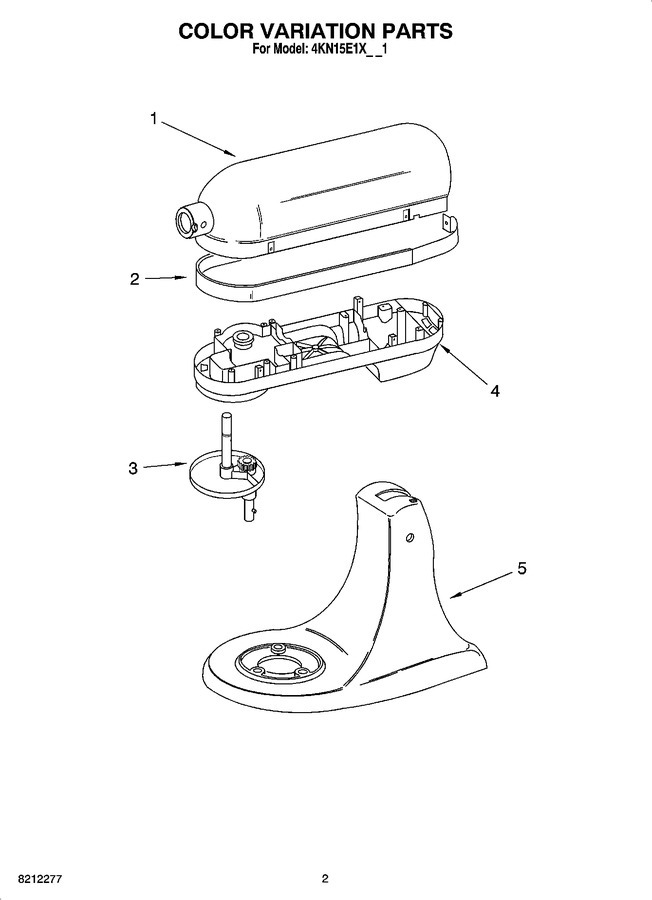

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9708658 | Motor Housing (meringue) |
|
$ 88.17 | |||||
| 1 | 9709571 | Motor Housing (silver) |
|
$ 88.20 | |||||
| 1 | 9708539 | Motor Housing (licorice) |
|
- | |||||
| 2 | 9708401 | Trim Band (dk Platinum/frost) |
|
- | |||||
| 3 | 9708662 | Planetary (meringue) |
|
- | |||||
| 3 | W10327955 | Planetary (silver) (Replaces: 9709575) |
|
$ 86.87 | |||||
| 3 | W11123171 | Planetary (licorice) (Replaces: 9708543) |
|
$ 86.89 | |||||
| 4 | 9708522 | Lower Gearcase (meringue) |
|
- | |||||
| 4 | 9709720 | Lower Gearcase (silver) |
|
- | |||||
| 4 | 9708546 | Lower Gearcase (licorice) |
|
- | |||||
| 5 | 9708525 | Pedestal And Foot Assembly (meringue) |
|
- | |||||
| 5 | 9709723 | Pedestal And Foot Assembly (silver) |
|
- | |||||
| 5 | 9708549 | Pedestal And Foot Assembly (licorice) |
|
- |
