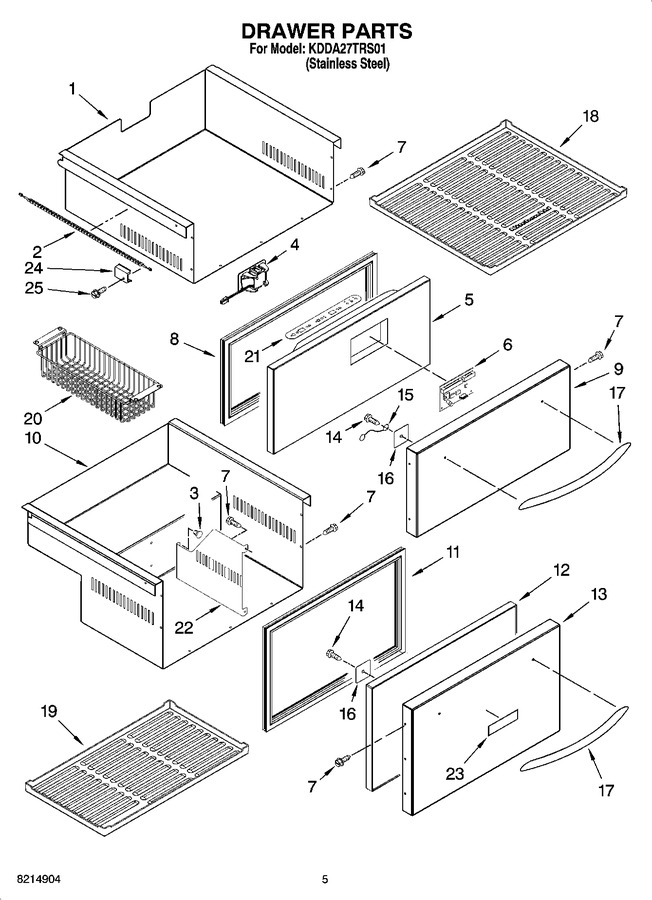

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Drawer Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257847		Drawer, Upper		Appelez-nous	-
2	2310007		Harness, Wiring (drawer)				$ 125.86
3	2258135		Rivet, Plastic		Appelez-nous	-
4	2258025		Light Assembly		Appelez-nous	-
5	2257948		Drawer Front (upper)		Appelez-nous	-
6	2304086		Control, Electronic				$ 252.77
7	8534081		Screw				$ 7.81
8	2258015		Gasket, Upper Drawer		Appelez-nous	-
9	2258205		Skin, Door (upper)		Appelez-nous	-
10	2257848		Drawer, Lower		Appelez-nous	-
11	2258016		Gasket, Lower Drawer		Appelez-nous	-
12	2257949		Drawer Front (lower)		Appelez-nous	-
13	2258206		Skin, Door (lower)		Appelez-nous	-
14	3400067		Screw				$ 35.58
15	2310033		Wire, Ground		Appelez-nous	-
16	9744437		Plate, Backing				$ 20.09
17	8557792		Handle				$ 67.80
18	2257937		Mat, Upper Drawer		Appelez-nous	-
19	2258134		Mat, Lower Drawer		Appelez-nous	-
20	2258000		Basket (2)		Appelez-nous	-
21	2258032		Overlay		Appelez-nous	-
22	2258131		Divider		Appelez-nous	-
23	2217214B		Nameplate		Appelez-nous	-
24	2258173		Cover, Connector		Appelez-nous	-
25	8534081		Screw				$ 7.81

    View Diagram in Separate Window       Print Part List
