SELECT A DIAGRAM

01 - Cabinet Parts

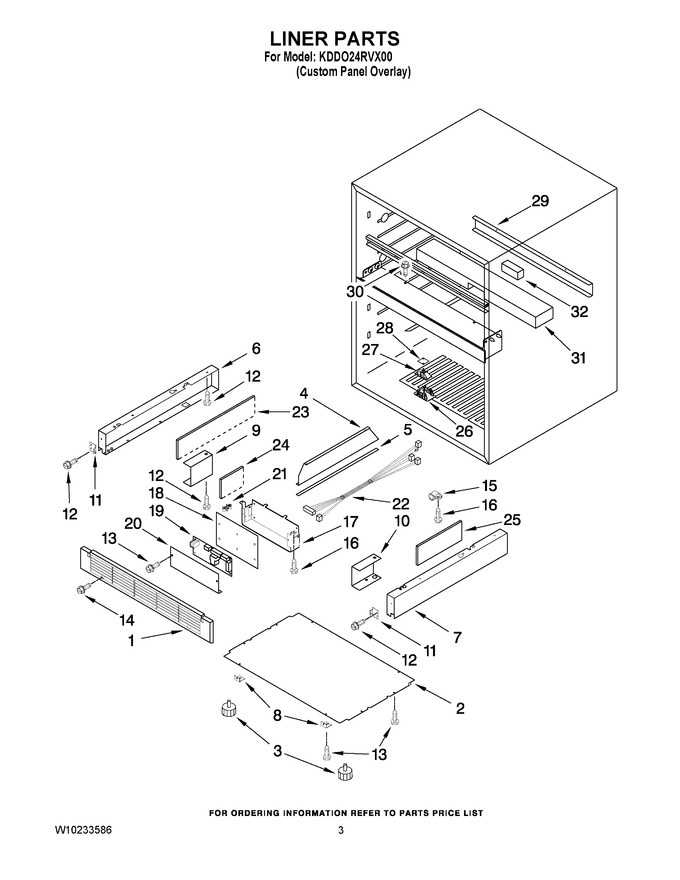

02 - Liner Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204635		Kick Plate				$ 192.12
2	4344762		Plate, Bottom		Appelez-nous	-
3	W11106296		Leveling Leg   (Replaces: 4344763)				$ 19.03
4	W10204638		Auxiliary Plate		Appelez-nous	-
5	4344823		Seal, Brace				$ 101.83
6	4344789		Side Frame, Lh				$ 345.59
7	4344790		Side Frame, Rh				$ 137.58
8	4344771		Bracket, Grille				$ 104.76
9	4344820		Side Support, Lh		Appelez-nous	-
10	4344821		Side Support, Rh		Appelez-nous	-
11	W10204640		Kick Plate Mount				$ 79.73
12	4344797		Screw, Lower Hinge		Appelez-nous	-
13	4344826		Screw, Grille				$ 16.70
14	W10837731		Screw   (Replaces: W10204644)				$ 8.30
15	W11456069		Cable Clamp   (Replaces: 4344824)			Immediately	$ 22.40
16	4344825		Screw		Appelez-nous	-
17	W10204645		Main Pcb Box		Appelez-nous	-
18	W10204646		Pcb Box Film		Appelez-nous	-
19	W10204648		Main Pcb				$ 465.18
20	W10204647		Pcb Box Cover		Appelez-nous	-
21	W10204659		Pcb Standoff				$ 59.39
22	W10204663		Power Harness				$ 181.93
23	W10205076		Acoustic Foam B		Appelez-nous	-
24	W10205077		Acoustic Foam C		Appelez-nous	-
25	W10205078		Acoustic Foam A		Appelez-nous	-
26	W10204929		Lamp Cover				$ 89.18
27	W10204931		Lamp Holder				$ 79.66
28	W10204930		Led Lamp				$ 347.60
29	W10205067		Mullion Cover		Appelez-nous	-
30	W10205069		Screw		Appelez-nous	-
31	W10205071		Mullion Insulation		Appelez-nous	-
32	W10205072		Mullion Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
