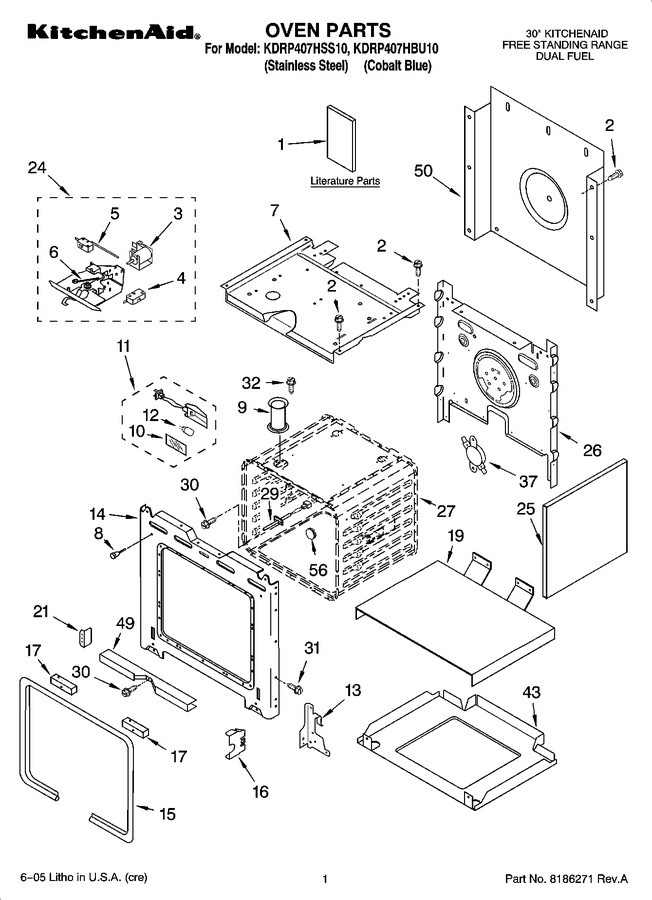

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455927		Installation Instructions		Appelez-nous	-
1	4456611		Use & Care Guide		Appelez-nous	-
1	4457148		Tech Sheet		Appelez-nous	-
1	9759441		Conversion Instructions		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
2	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55
3	4452224		Solenoid		Appelez-nous	-
4	4452312		Switch, Micro				$ 90.43
5	4456568		Switch, Micro				$ 83.91
6	4451537		Spring, Latch		Appelez-nous	-
7	4455866		Top, Chassis		Appelez-nous	-
8	4448520		Bumper, Door				$ 22.25
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
14	4455612		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	4452152		Bracket, Mounting				$ 35.18
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	4452260		Spacer, Foam		Appelez-nous	-
19	4451478		Support, Insulation				$ 54.10
21	4455510		Bracket, Support		Appelez-nous	-
24	4451896		Latch Assy				$ 163.41
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449154		Screw, 8-32 X .440   (Replaces: 4449154)				$ 8.16
31	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
32	W11233072		Screw, 8-18 X 1/2   (Replaces: 3196176)			Immediately	$ 14.72
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
43	4455649		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
56	4452337		Insulation Bottom Vent		Appelez-nous	-
56	4448982		Button, Plug		Appelez-nous	-
56	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
56	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
56	4450365		Insulation, Back				$ 70.95
