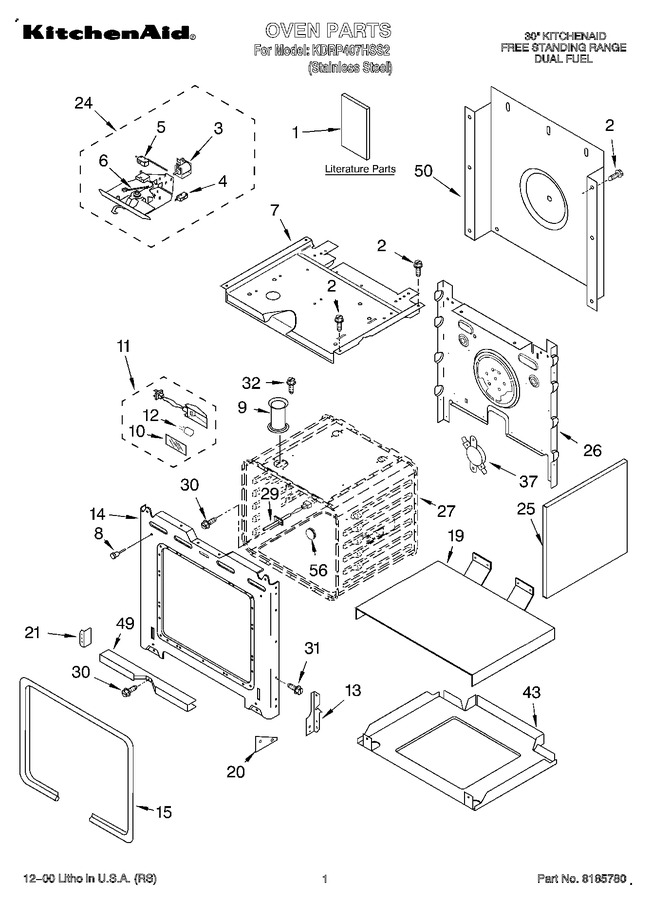

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven, Literature
02 - Oven Door
03 - Internal Oven
04 - Control Panel
05 - Top Venting
06 - Cooktop
07 - Burner Box And Manifold
08 - Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4452761 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT4453057 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT4453152 | Literature Parts (conversion Instructions) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT4452762 | Literature Parts (installation Instructions) |
|
- | |||||
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 3 | 4452224 | Solenoid |
|
- | |||||
| 4 | 4452312 | Switch, Micro |
|
$ 90.43 | |||||
| 5 | 4451426 | Switch, Micro |
|
- | |||||
| 6 | 4451537 | Spring, Latch |
|
- | |||||
| 7 | 4455472 | Top, Chassis |
|
- | |||||
| 8 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | WP4448972 | Oven Light Assy (Replaces: 4448972) |
|
$ 114.87 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 70.69 | ||||
| 13 | 4455723 | Hinge Receiver (right Hand) |
|
$ 37.24 | |||||
| 13 | 4455722 | Hinge Receiver (left Hand) |
|
$ 37.47 | |||||
| 14 | 4451740 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 74.56 | ||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 20 | WP4455509 | Bracket, Support (Replaces: 4455509) |
|
$ 94.01 | |||||
| 21 | 4455510 | Bracket, Support |
|
- | |||||
| 24 | 4451896 | Latch Assy |
|
$ 163.41 | |||||
| 25 | 4452419 | Side, Chassis (left Hand) |
|
- | |||||
| 25 | 4452418 | Side, Chassis (right Hand) |
|
- | |||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 27 | N/A | Liner, Oven (not Serviceable) |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 30 | WP4449154 | Screw, 8-32 X .440 (Replaces: 4449154) |
|
$ 8.16 | |||||
| 31 | WP4449040 | Screw, 8-18 X 3/8 (Replaces: 4449040) |
|
$ 6.78 | |||||
| 32 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 4451442) |
|
Immediately | $ 55.44 | ||||
| 43 | 4455649 | Base, Chassis |
|
- | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 56 | 4452337 | Insulation Bottom Vent |
|
- | |||||
| 56 | 4448982 | Button, Plug |
|
- | |||||
| 56 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 124.85 | |||||
| 56 | 4450365 | Insulation, Back |
|
$ 70.95 |
