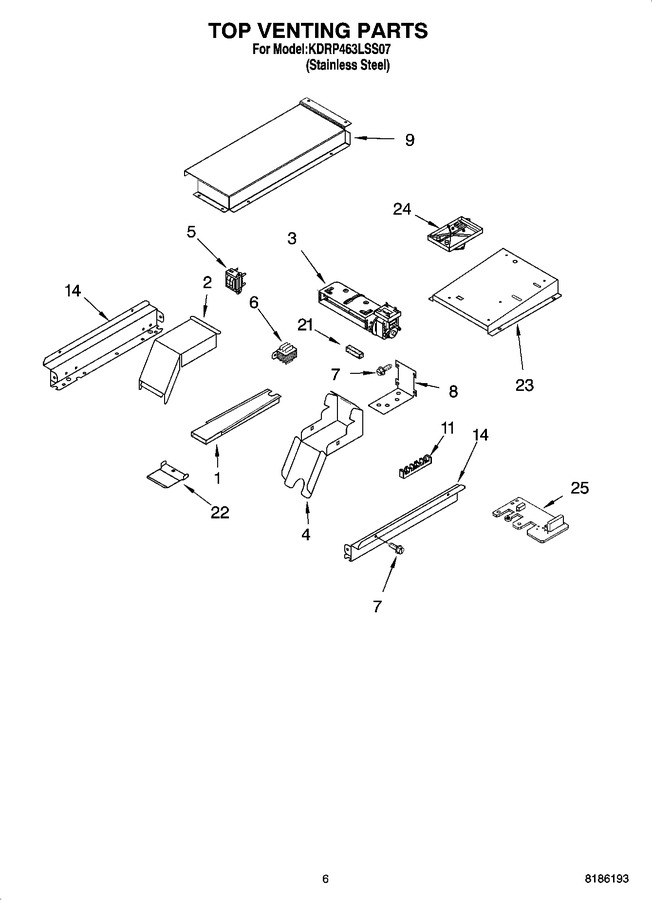

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 105.01
2	4455178		Elbow, Vent- Top				$ 15.52
3	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 7.55
3	W10810687		Blower 60mm   (Replaces: 8300223)			Immediately	$ 343.34
3	WP3400015		Screw (1)   (Replaces: 3400015)				$ 7.55
4	4455177		Elbow, Vent- Bottom				$ 11.39
5	WP9760588		Transformer, Light   (Replaces: 6610122)				$ 276.58
6	8300642		Transformer, Control		Appelez-nous	-
7	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55
8	WP4455352		Bracket, Blower   (Replaces: 4455352)				$ 37.51
9	8301632		Box, Blower		Appelez-nous	-
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
14	4452442		Side, Control Top		Appelez-nous	-
21	W10491987		Seal, Foam   (Replaces: 4451758)			Immediately	$ 8.14
22	W10145009		Deflector, Vent Box   (Replaces: 4452489)				$ 81.61
23	8301489		Bracket, Control Mounting		Appelez-nous	-
24	8302210		Control, Zodiac				$ 265.81
25	W11684512		Screw (4)   (Replaces: 3400080)				$ 14.81
25	WP4451985		Suppressor   (Replaces: 4451985)				$ 173.47
