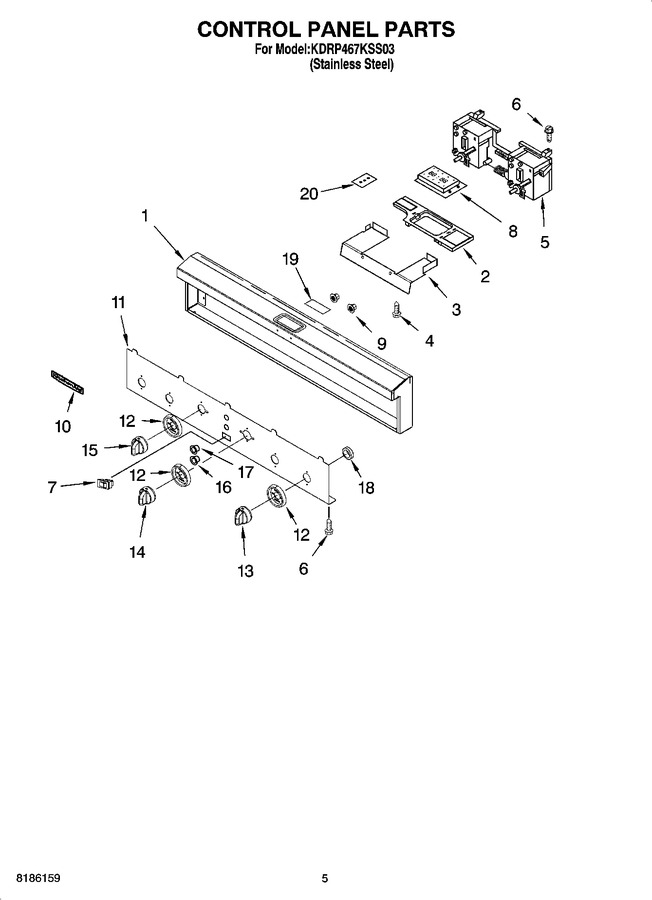

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300208		Panel, Control		Appelez-nous	-
2	4453000		Bracket, Display		Appelez-nous	-
3	8300805		Bracket, Display Mounting		Appelez-nous	-
4	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.95
5	8300203		Control, Zodiac		Appelez-nous	-
6	W10276642		Screw, 6-19 X 1   (Replaces: 4449746)				$ 6.41
7	WP4452842		Switch, Rocker   (Replaces: 4452842)				$ 104.45
8	WP4452999		Module, Display   (Replaces: 4452999)			Immediately	$ 342.41
9	WP2004333		Palnut   (Replaces: 2004333)				$ 11.24
10	2005292		Nameplate				$ 52.20
11	8300167		Face, Control Panel		Appelez-nous	-
12	4455192		Bezel, Knob		Appelez-nous	-
13	WPW10078400		Knob, Control   (Replaces: 4454970)				$ 7.30
14	4455115		Knob, Temp/time				$ 21.22
15	4455141		Knob, Selector				$ 21.38
16	4452998		Button, Cancel		Appelez-nous	-
17	WP4452997		Button, Enter   (Replaces: 4452997)				$ 148.59
19	4455806		Glass, Display		Appelez-nous	-
20	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 12.05
