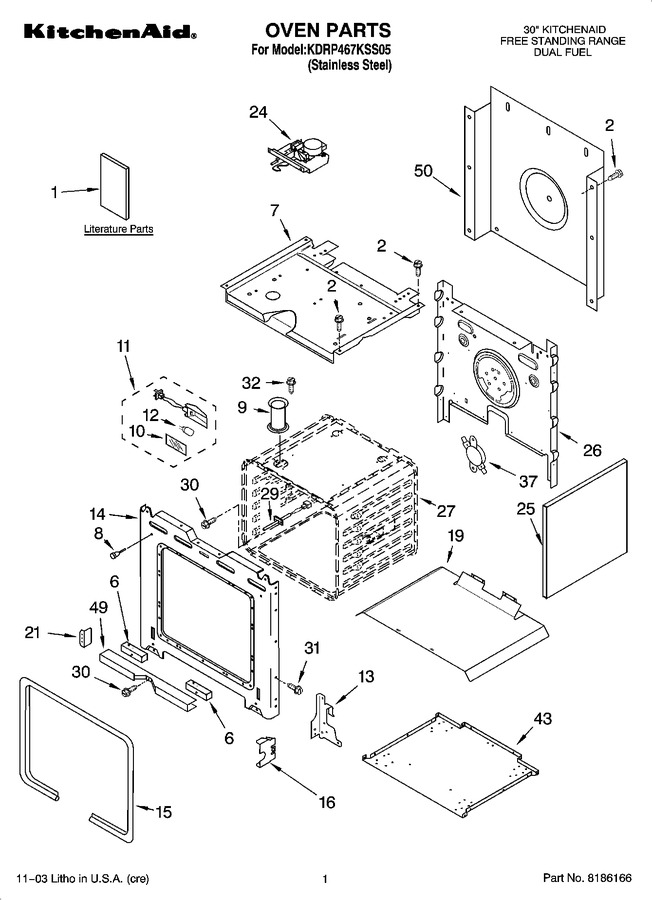

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8300988		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4456611		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4456556		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8301171		Literature Parts (conversion Instructions)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55
6	4452260		Spacer, Foam		Appelez-nous	-
7	8301017		Top, Chassis		Appelez-nous	-
8	4448520		Bumper, Door				$ 22.25
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
14	8300150		Frame, Front		Appelez-nous	-
15	W11676901		Gasket, Door   (Replaces: 8300142)				$ 75.74
16	4452152		Bracket, Mounting				$ 35.18
19	8300184		Support, Insulation		Appelez-nous	-
21	4455510		Bracket, Support		Appelez-nous	-
24	8302156		Latch, Motorized		Appelez-nous	-
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	8300193		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449154		Screw, 8-32 X .440   (Replaces: 4449154)				$ 8.16
31	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
32	W11233072		Screw, 8-18 X 1/2   (Replaces: 3196176)			Immediately	$ 14.72
37	WP8300802		Thermostat (tod) (temp.) Spst   (Replaces: 8300802)			Immediately	$ 126.65
43	8300965		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	8300154		Insulation, Bottom Vent		Appelez-nous	-
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
50	8300158		Insulation, Wrap		Appelez-nous	-
50	8300159		Insulation, Back		Appelez-nous	-
