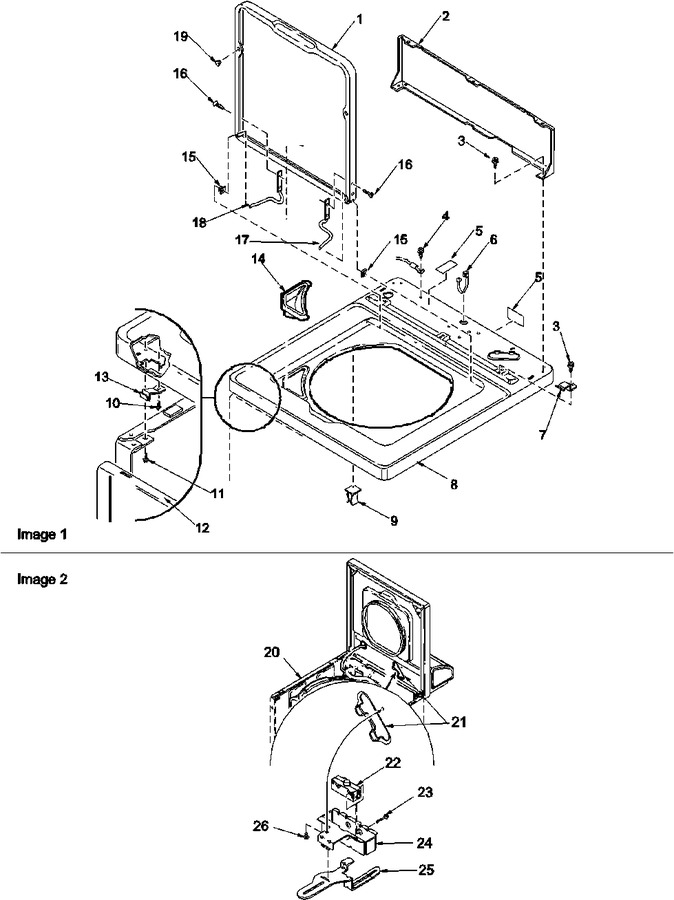

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	37827WP		Loading Door		Appelez-nous	-
2	37782		Control Hood Back Panel				$ 26.14
3	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.82
4	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
5	24903		Sticker,disconnect Pow		Appelez-nous	-
6	21903		Strain Relief		Appelez-nous	-
7	35887		Hold-down Clip		Appelez-nous	-
8	37992WP		Top, Home W/bleach				$ 278.05
9	36519		Clip				$ 7.72
10	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.82
11	WP27001200		Screw,10-24t X 3/4 Sem   (Replaces: Y31644)				$ 7.68
12	204870		Front Panel   (Replaces: 38238WP)			Immediately	$ 203.40
13	38271		Clip				$ 0.93
14	202996		Bleach Dispenser   (Replaces: 38382)				$ 7.72
15	39039		Bushing		Appelez-nous	-
16	WPW10119828		Screw   (Replaces: 34337)			Immediately	$ 7.19
17	36437		Hinge, Lid R			Immediately	$ 8.95
18	36513		Hinge, Left				$ 18.72
19	21685		Bumper			Immediately	$ 7.72
20	34475WP		Cabinet		Appelez-nous	-
21	37992WP		Top, Home W/bleach				$ 278.05
22	33445		Switch				$ 8.95
23	36510		Screw		Appelez-nous	-
24	37629		Switch Holder				$ 2.30
25	37630		Actuator Arm		Appelez-nous	-
26	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.82

    View Diagram in Separate Window       Print Part List
